Panel Mounting(PM)

Hole Mounting(HM)

Dinrail Board(DB)

Door Clutch(DC)

PEDS (1500V, 40~55A)Series

PROJOY isolating switch products include two series of AC and DC, which mainly play the role of effective isolation in the power system, and perform infrequent switching on and off of the circuit. The products have the advantages of small size, good flame retardant performance, high electrical life, short arcing distance, various wiring methods, etc. can meet most application scenarios.
Product Features
• Power distribution module installation




High Craftsmanship and Standards
Various Installation methods Various connection methods High Electrical life

Energy storage spring, quick switch Modular design IP66 Protection class


Strong flame retardant performance -40℃~+70℃ full load operation


Product Model

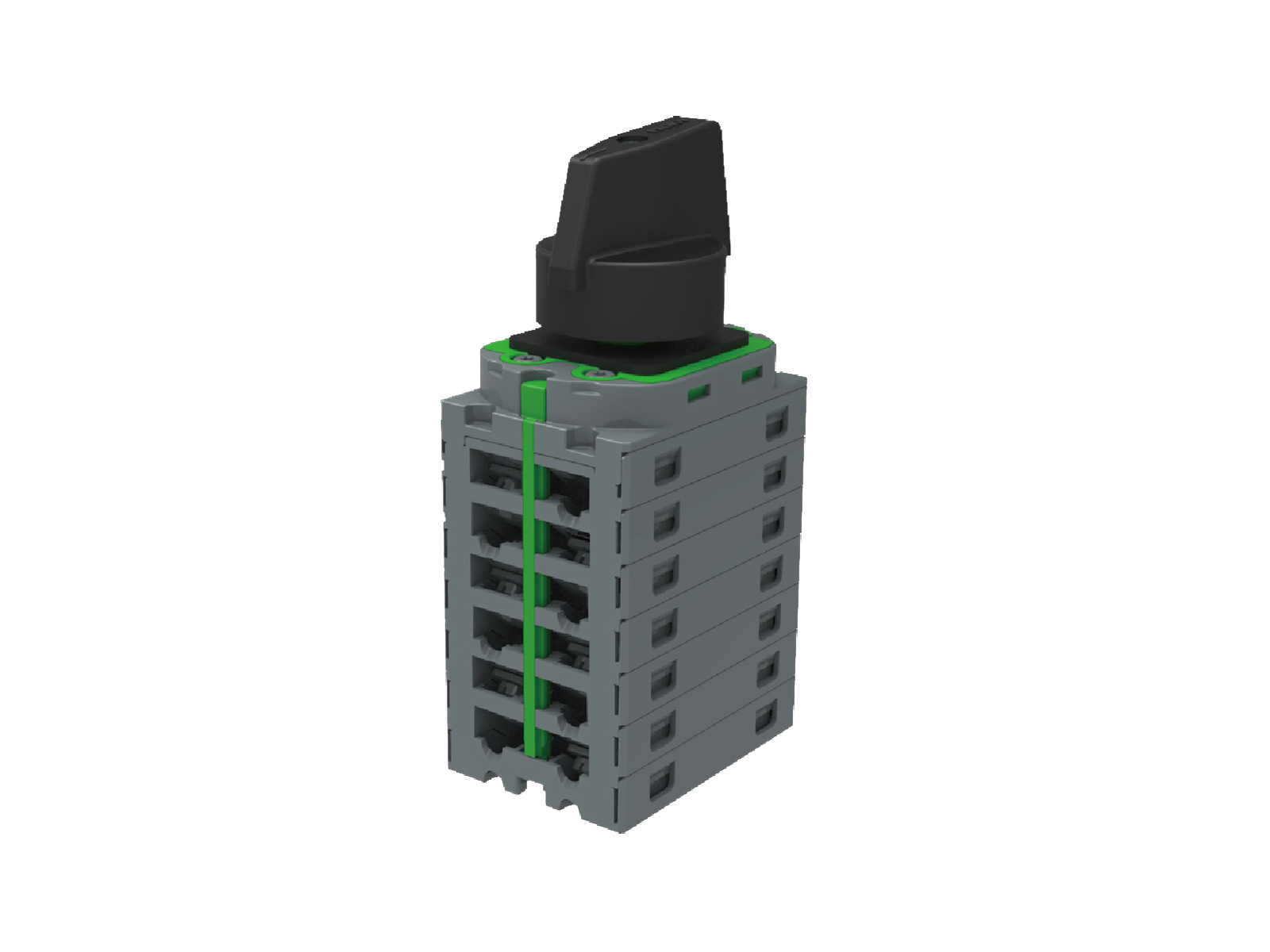

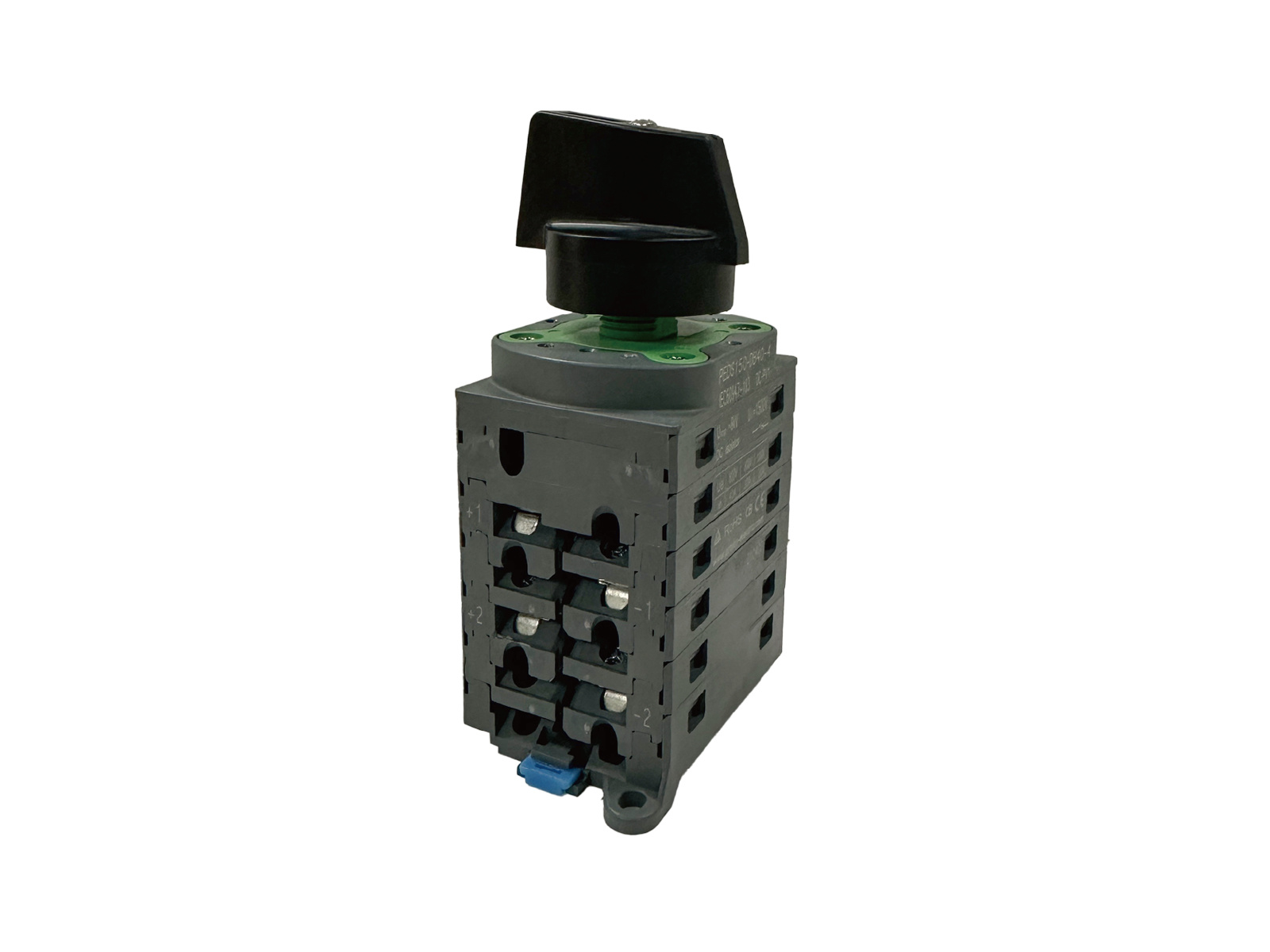

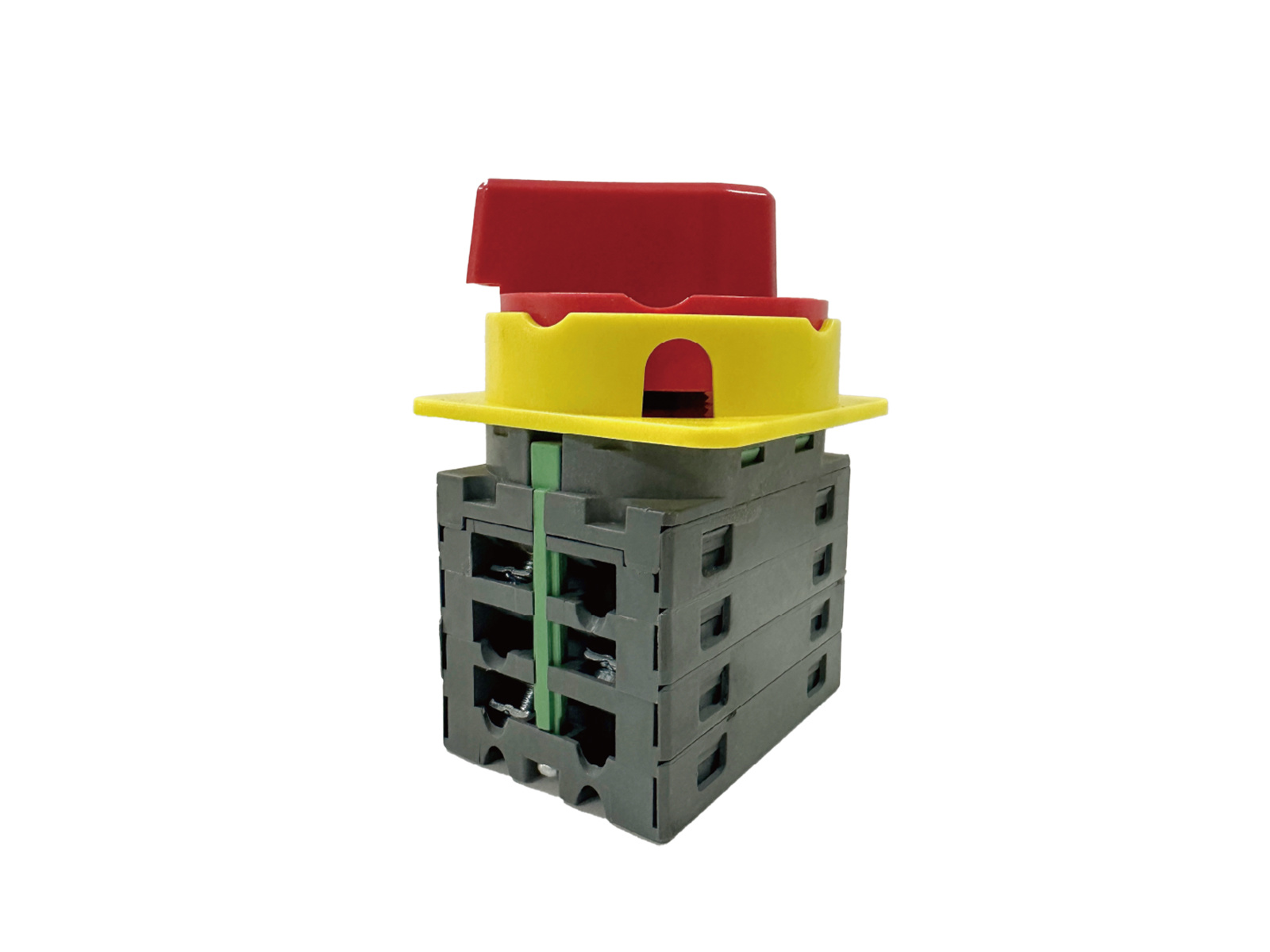

Panel Mounting(PM) Dinrail Board(DB) Hole Mounting(HM) Door Clutch(DC)





Technical Parameter

Rated Insulation Voltage Ui DC1500V Rated thermal current Ith 40A/55A Poles 2P/3P/4P/6P/8P
Rated withstand impulse voltage Uimp DC 8000V Rated short-time withstand current Icw 780A/1s Rated short-circuit making capacity Icm 1200A
Mechanical life 10000 times Electrical life 1000 times Installation method Hole Mounting, Panel Mounting, Dinrail Board, Enclosure

Download

Certificate User Manual

PEDS150 UL E489584--Certificateof

179.6KB

PEDS150 TUV+CE certificate

1.6MB

TUV+CE certificate_PEDS150

588.7KB

TUV-Certificate_PEDS150 R 50494197 0006

133.3KB

PEDS150 certificate TUV-025269-EA CoA (AZ 69025269)2021

1.6MB

PEDS(HM PM)TUV 2022.5.9

10.8MB

PEDS(PEDSC,PEDSH)-UKCA

1.1MB

Datasheet_PEDS16-55 (Front Contact)_V1.4

2.1MB

Datasheet_PEDS16-55 (Reverse Contact)_V1.4

1.8MB
