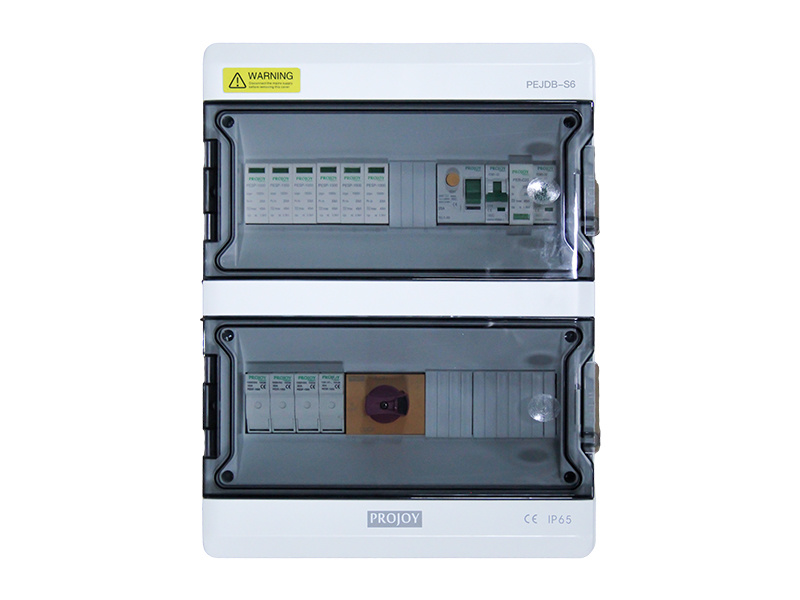

PEJDB-2-2/S6
PEJDB-2-2/T10
PEJDB-2-2/T20
DC&AC Combiner Box (PEJDB Series)
Combiner Box Product Features
| • Suitable for residential, commercial, and industrial PV systems | • Compatible with three-phase systems up to 20kW |
| • Customizable to meet client requirements | • IP65 protection rating |
High Craftsmanship and Standards
|
|
|
|
|
IP65 Protection Level 1. The surface cover and bottom shell are wrapped with waterproof sealing strips, providing better waterproof performance |
Reserved Space for Functional Stickers There is a space on the surface frame especially for functional stickers. After that, you can clearly view the component control area. |
Latch Function Reserved for anti-theft lock |
 |
 |
 |
|
Circuit Baffle Structure The circuit baffles on the left and right sides of the surface frame have a partial filling function and are easy to disassemble
|
Captive Frame Structure Using captive screws and making sure the screws will not be lost when loosening the surface frame
|
Copper Terminal Assembly The terminal block can pass the 960°C glow wire test, its safety performance is guaranteed
|
AC & DC Combiner Box Models
 |
 |
 |
 |
| PEJDB-1-1/S3 | PEJDB-2-2/S6 | PEJDB-2-2/T10 | PEJDB-2-2/T20 |
PEJDB Series AC & DC Distribution Box Technical Parameters
| Model | PEJDB-1-1/S3 | PEJDB-2-1/S6 | PEJDB-2-2/T10 | PEJDB-2-2/T20 |
| DC Side Parameters | ||||
| Number of Input Strings | 1 String | 2 Strings | 2 Strings | 2 Strings |
| Number of Output Strings | 1 String | 1 String | 2 Strings | 2 Strings |
| Max. Output Operating Voltage per String | 1000V DC | 1000V DC | 1000V DC | 1000V DC |
| Max. Output Operating Current per String | 15A | 30A | 15A | 15A |
| AC Side Parameters | ||||
| Rated Operating Voltage Ue | 230 VAC | 230 VAC | 400 VAC | 400 VAC |
| Rated Operating Current Ie | 16A | 32A | 20A | 40A |
| Electric Box Parameters | ||||
| Material Type | Polycarbonate PC | |||
| Protection Level | IP65 | |||
