PEDS150-EL Series External DC Isolator (1500V, 25A)
PROJOY PEDS150-EL is an enclosed DC isolator switch for safely disconnecting PV arrays from inverters. It supports one or two PV strings and features integrated MC4 connectors, a compact IP66 enclosure and a lockable rotary handle for secure outdoor installation.
External DC Isolator Product Features
| • Compact enclosed design with a rated insulation voltage of 1500V DC | • Available in 1-string/2P and 2-string/4P configurations |
| • Integrated MC4 connectors for quick and convenient installatio | • Lockable rotary handle helps prevent accidental operation |
| • IP66-rated design for reliable outdoor installation | • Wide operating temperature range from -40°C to +85°C |
High Craftsmanship and Standards
 |
 |
 |
| Small volume | Flame retardant material | Standard configuration: breather valve, MC4 |
 |
 |
 |
| Arcing Short | Complete accessories | Multiple wiring |
Product Model
 |
 |
 |
 |

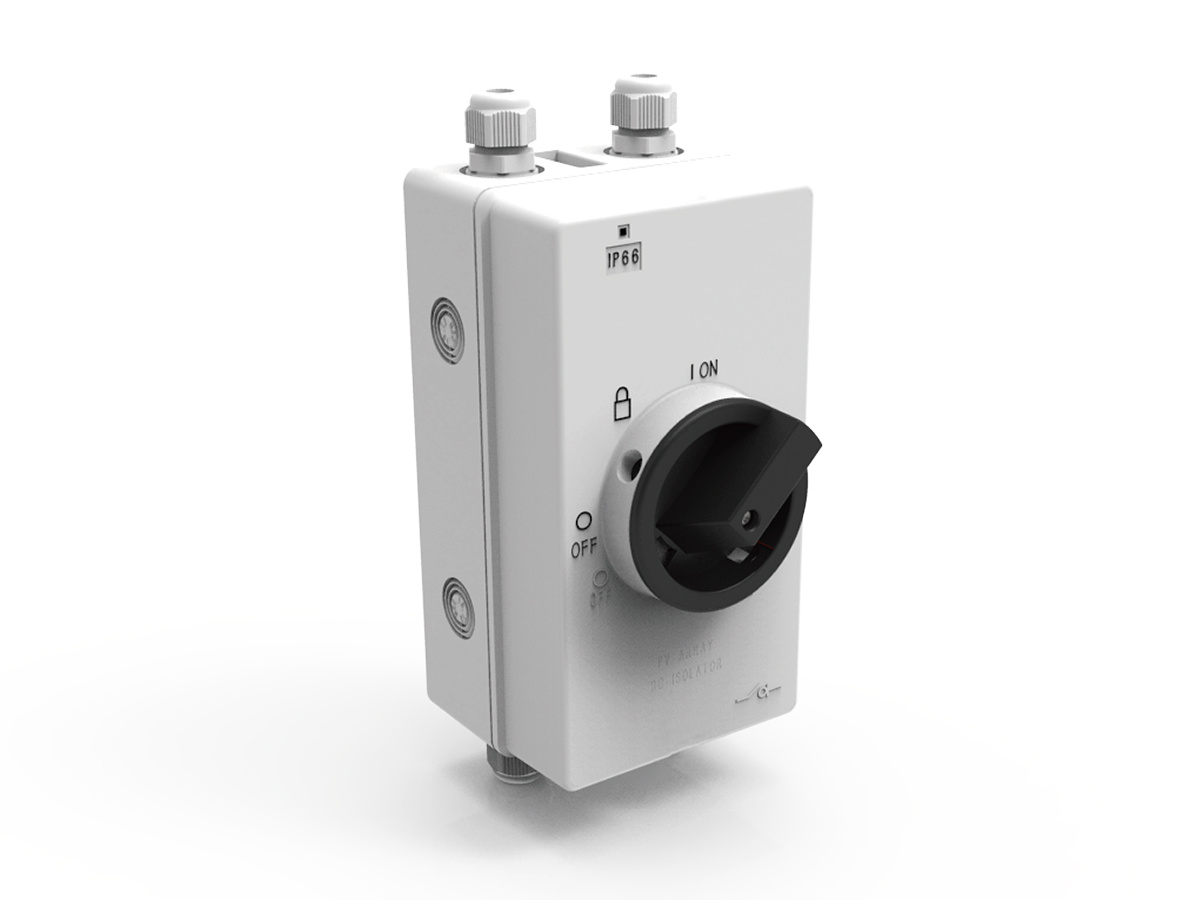

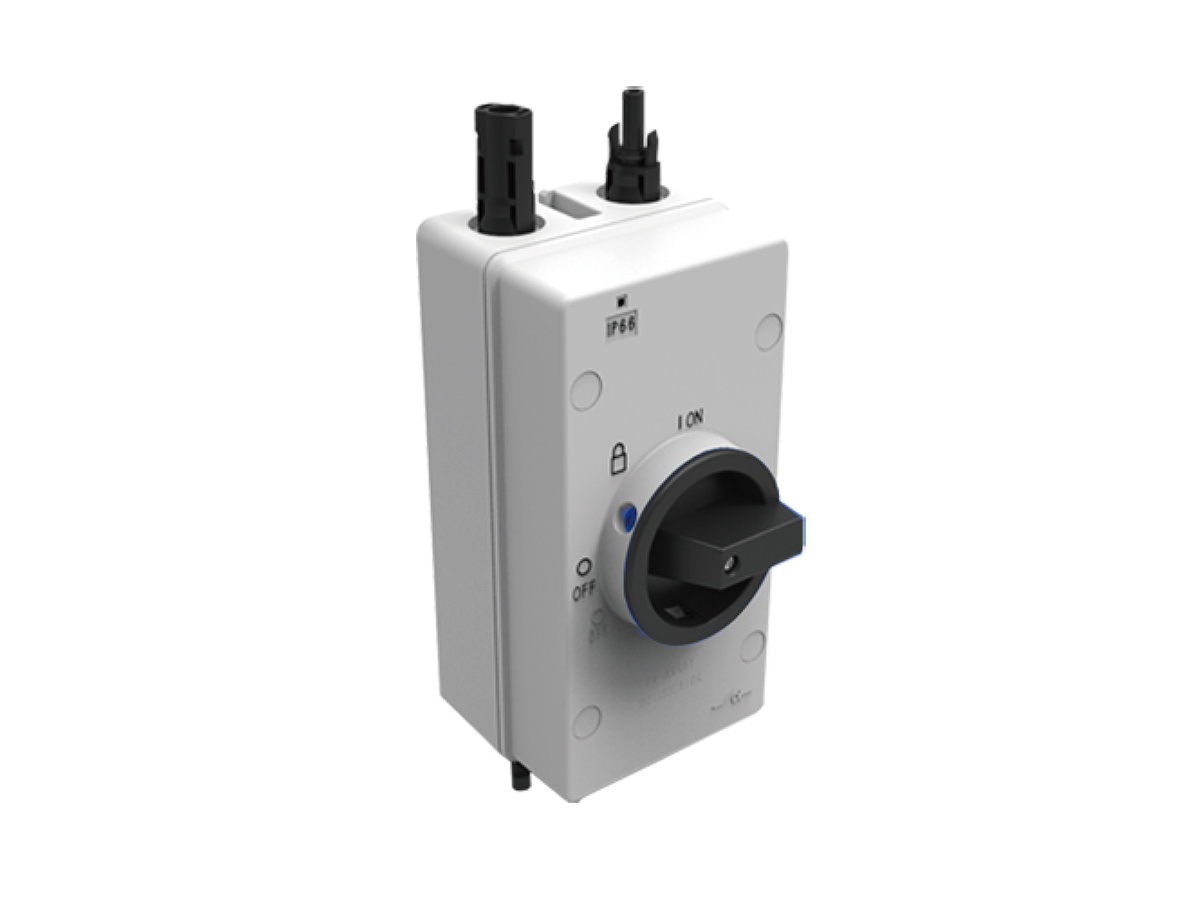

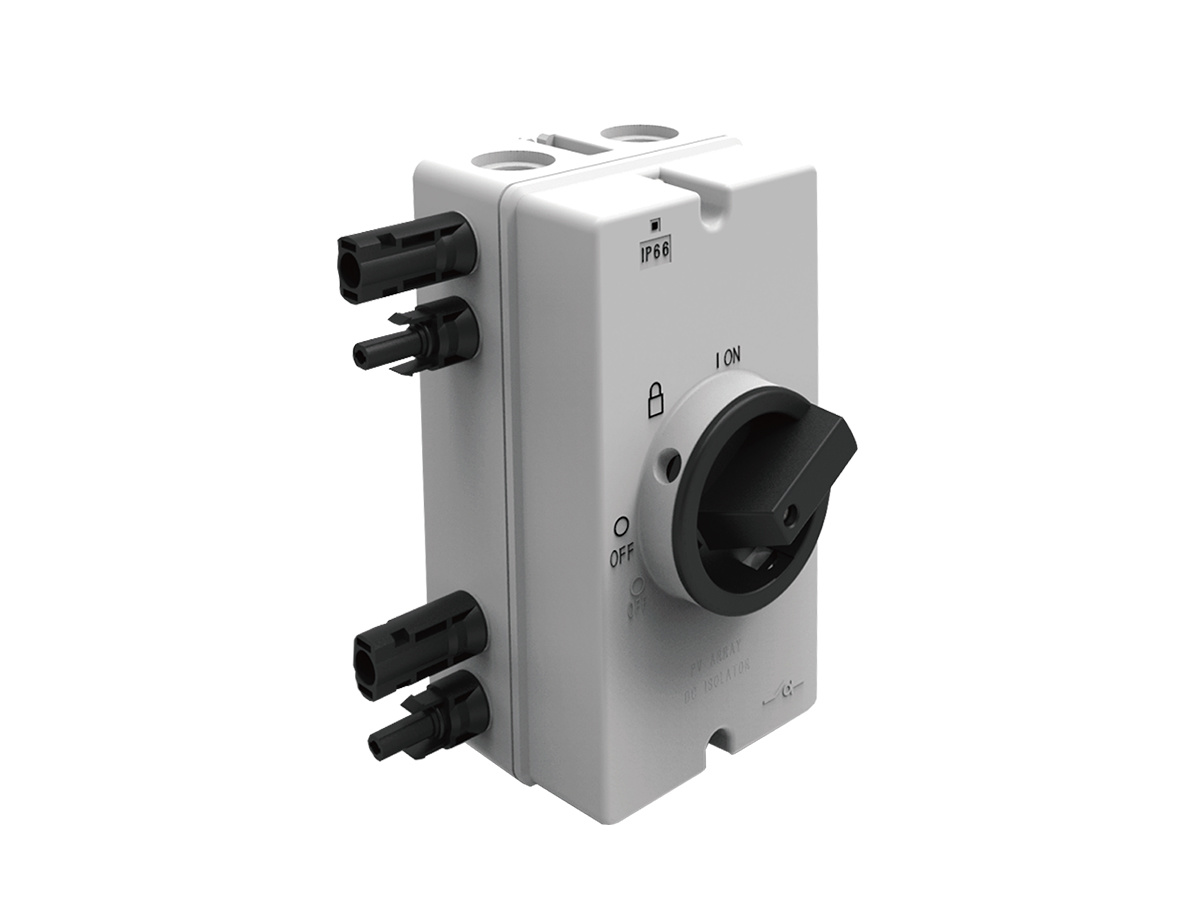

| Standard | M25 | 4MC4 | 2MC4 |
PEDS150-EL External DC Isolator Switch Technical Specifications
| Product Model | PEDS150-EL25R-2 | PEDS150-EL25R-4 |
| Number of PV Strings | 1 String | 2 Strings |
| Number of DC Poles | 2P | 4P |
| MC4 Connectors | 2 × MC4 | 4 × MC4 |
| Rated Insulation Voltage (Ui) | 1500V DC | |
| Rated Operational Voltage / Current (Ue / Ie) | 600V DC / 25A; 800V DC / 20A; 1000V DC / 11A | |
| Rated Thermal Current (Ith) | 25A | |
| Mechanical Life | 10,000 Operating Cycles | |
| Operating Temperature | -40°C to +85°C | |
| IP Rating of Shaft and Mounting Nut | IP66 | |
