PEBS-S-80 UL (2P)

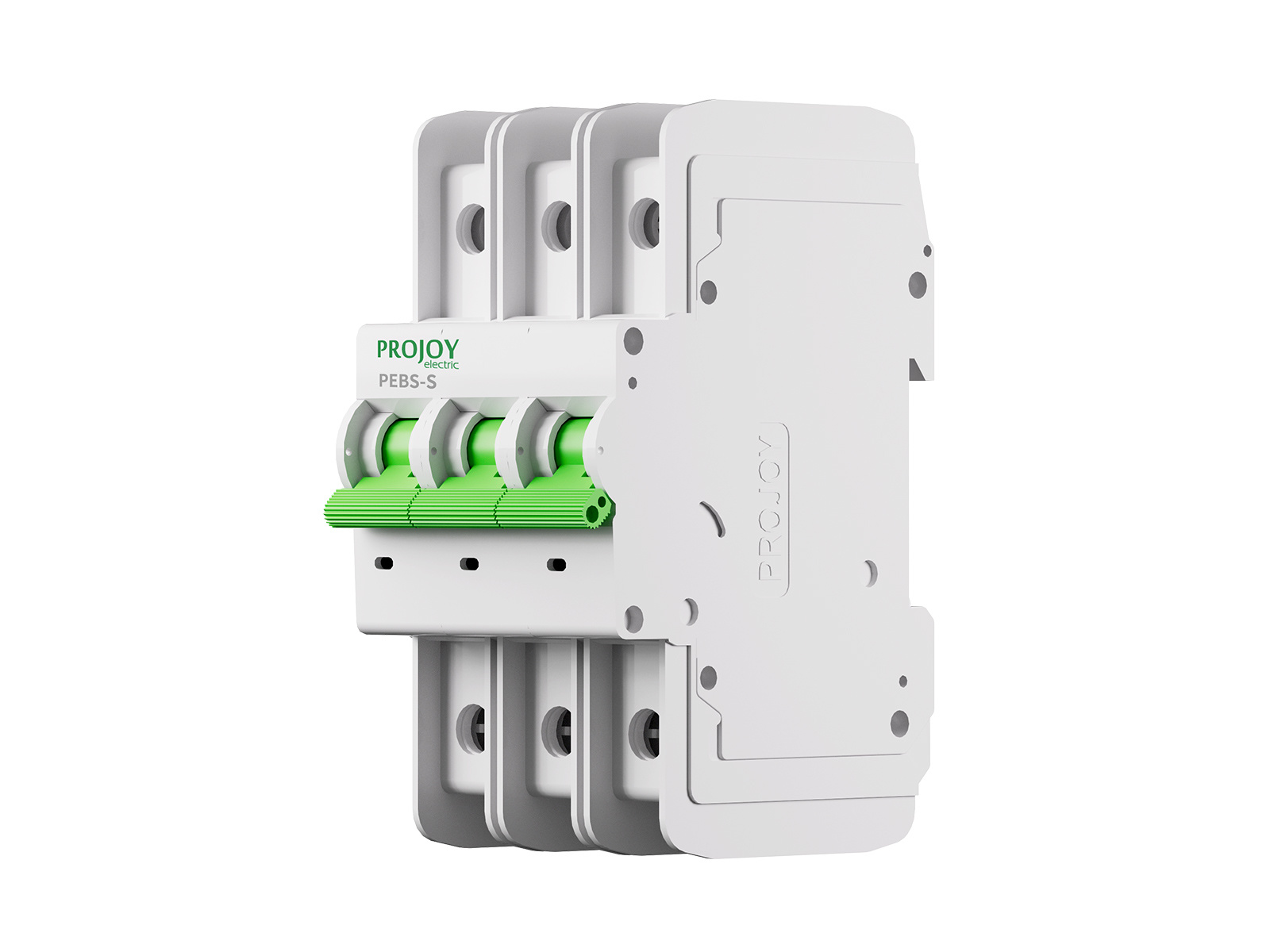

PEBS-S-80 UL (3P)

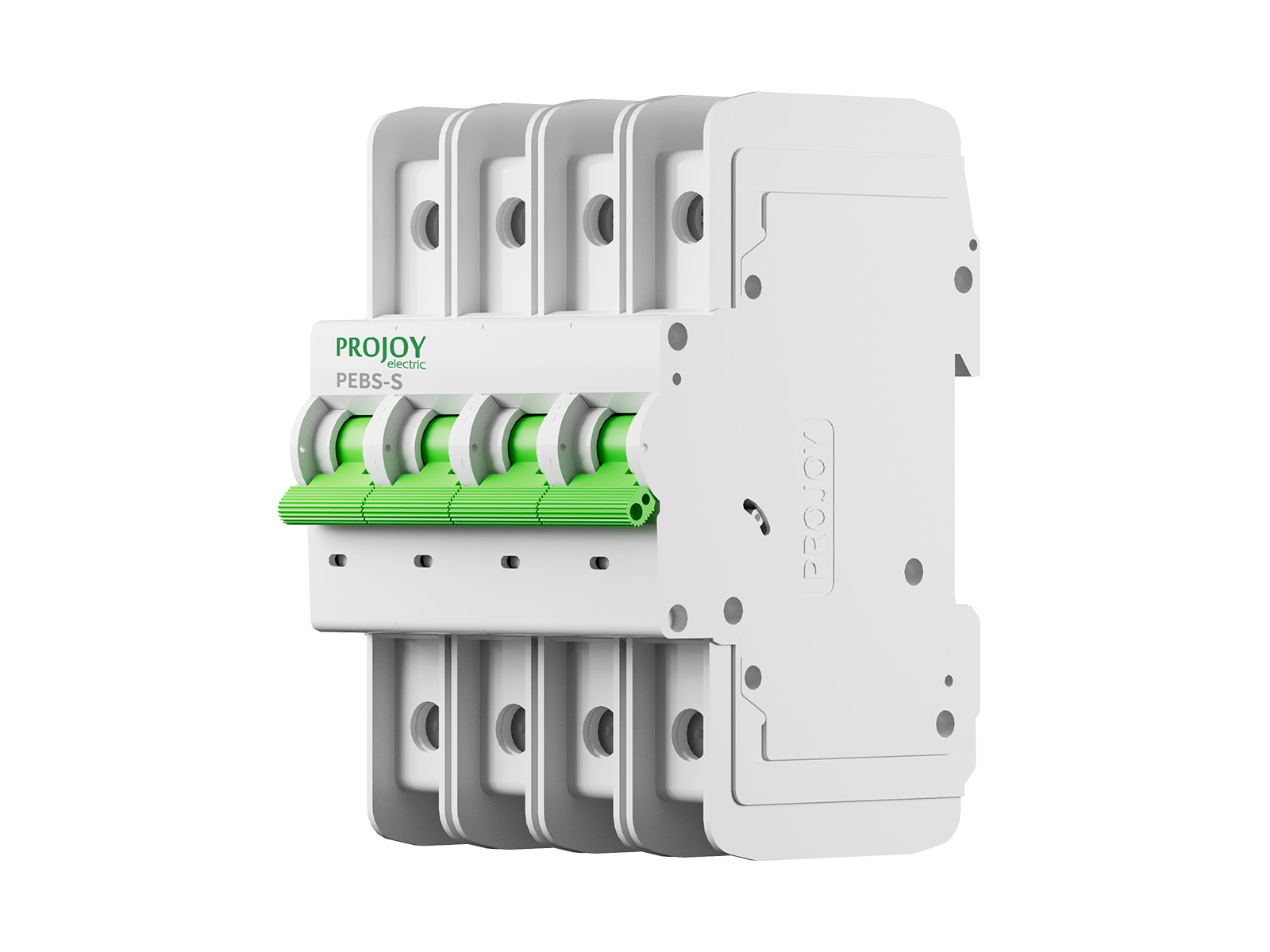

PEBS-S-80 UL (4P)

PEBS-S-80 UL (1~4P)

PEBS-S Series Miniature Circuit Breaker

Projoy DC miniature circuit breaker (PEBS series) is a protective device equipped with a special arc extinguishing and current limiting system, providing sufficient protection from overload, short circuit, and infrequent operation. It is an essential component of Photovoltaic (PV) systems and energy storage systems to avoid any mishaps. Projoy offers different types of Miniature Circuit Breakers based on different factors such as the current rating, voltage rating, and trip characteristic, allowing the products use for residential, commercial and industrial applications.
Product Features
• Non-polarity design, 1P~4P • TUV, CE, CB, UL, SAA certified
• The electrical life can reach 1500 times • Ics≥6KA
• 30'℃ ~+70'℃, Meet ROHS and REACH environmental protection regulations


High Craftsmanship and Standards
Full current specification High breaking capacity Non-polar design

Adapt to high and low temperature environment Long mechanical and electrical life Flame retardant material, more secure


UL Listed


Product Model
PEBS-S-80 UL (2P) PEBS-S-80 UL (3P) PEBS-S-80 UL (4P) PEBS-S-80 UL (1~4P)





Technical Parameter

Rated current 16A,20A,25A,32A,40A,50A,63A,80A  Insulation Voltage 1000V Withstand impulse voltage 6kV
Rated working voltage 500VDC/2P,750VDC/3P,1000VDC/4P Tripping Characteristics B,C Ambient Temperature -30℃~+70℃
Breaking capacity 10kA Mechanical life 20000 times Electrical life 1500 times
According to UL 489 and CSA C22.2 No.5

Download

Certificate User Manual

PEBS-S-80 CB certificate 05004805_0001

508.8KB

PEBS-S-80 (GTS-certificate) 20230802

1.0MB

PEBS-S certificate TUV 【2023.11.20】

1.7MB

PEBS-S certificate TUV+CE【2023.11.20】

1.6MB

PEBS-H,PEBS-L,PEBS-S UKCA(2)

1.1MB

PEBS-S 80A series UL version micro break certificate

315.3KB

Datasheet -PEBS-S -80 DC Miniature Circuit Breaker(TUV)V2024o1o3

8.2MB
