PEDS150H Series DC Isolator (1500V, 40/50A)
DC Isolator Product Features
| • Compact modular design, 1500V DC insulation voltage | • 40A and 50A rated thermal current options |
| • Horizontal contact design for flexible installation | • 2P / 3P / 4P / 6P / 8P / 10P configurations available |
| • Short arcing for reliable DC switching | • IP66 protection at the shaft and mounting nut |
High Craftsmanship and Standards
 |
 |
 |
| Small volume | Flame retardant material | Arcing Short |
 |
 |
|
| Complete accessories | Multiple wiring |
Product Model
 |
 |
 |

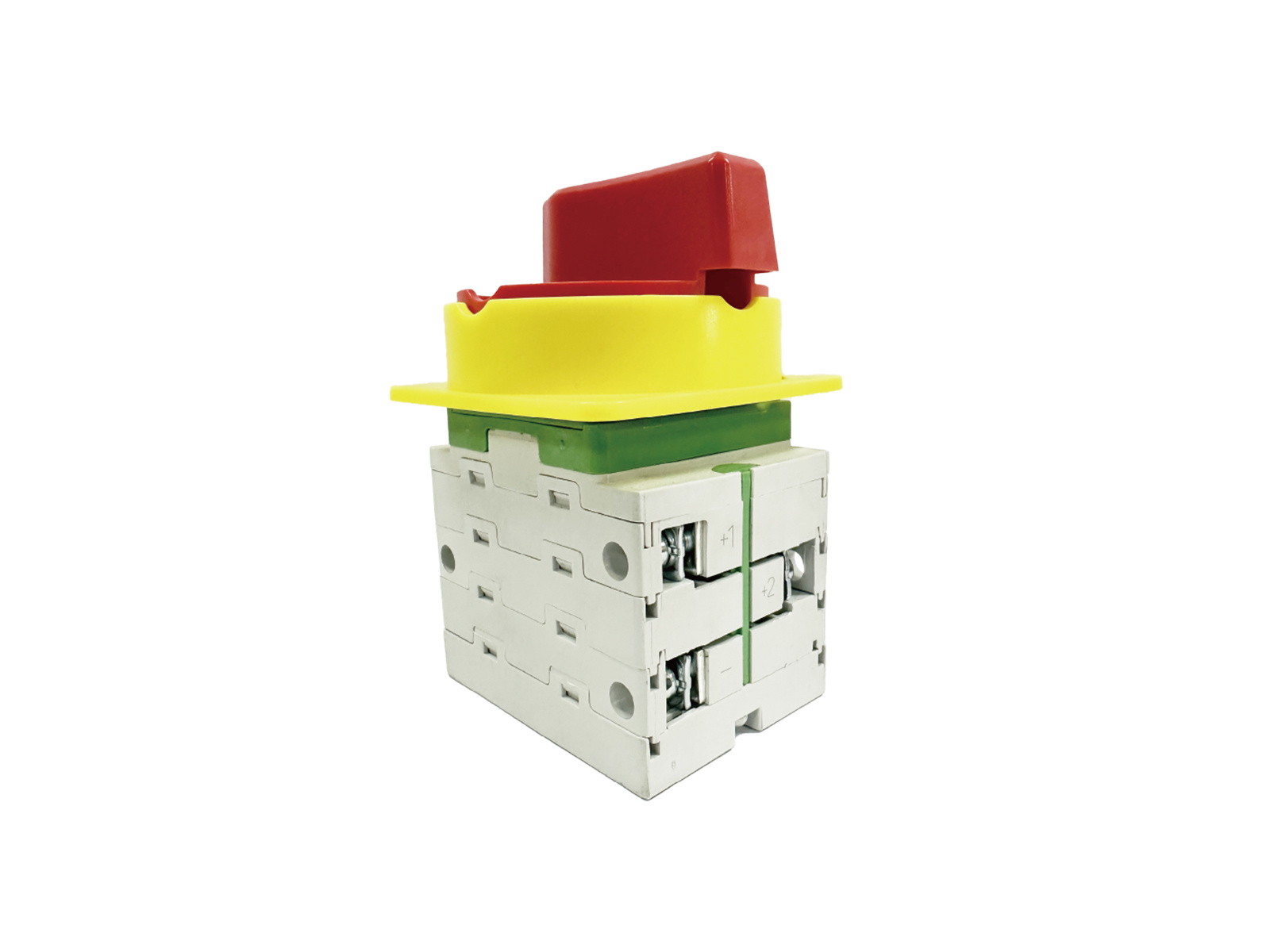

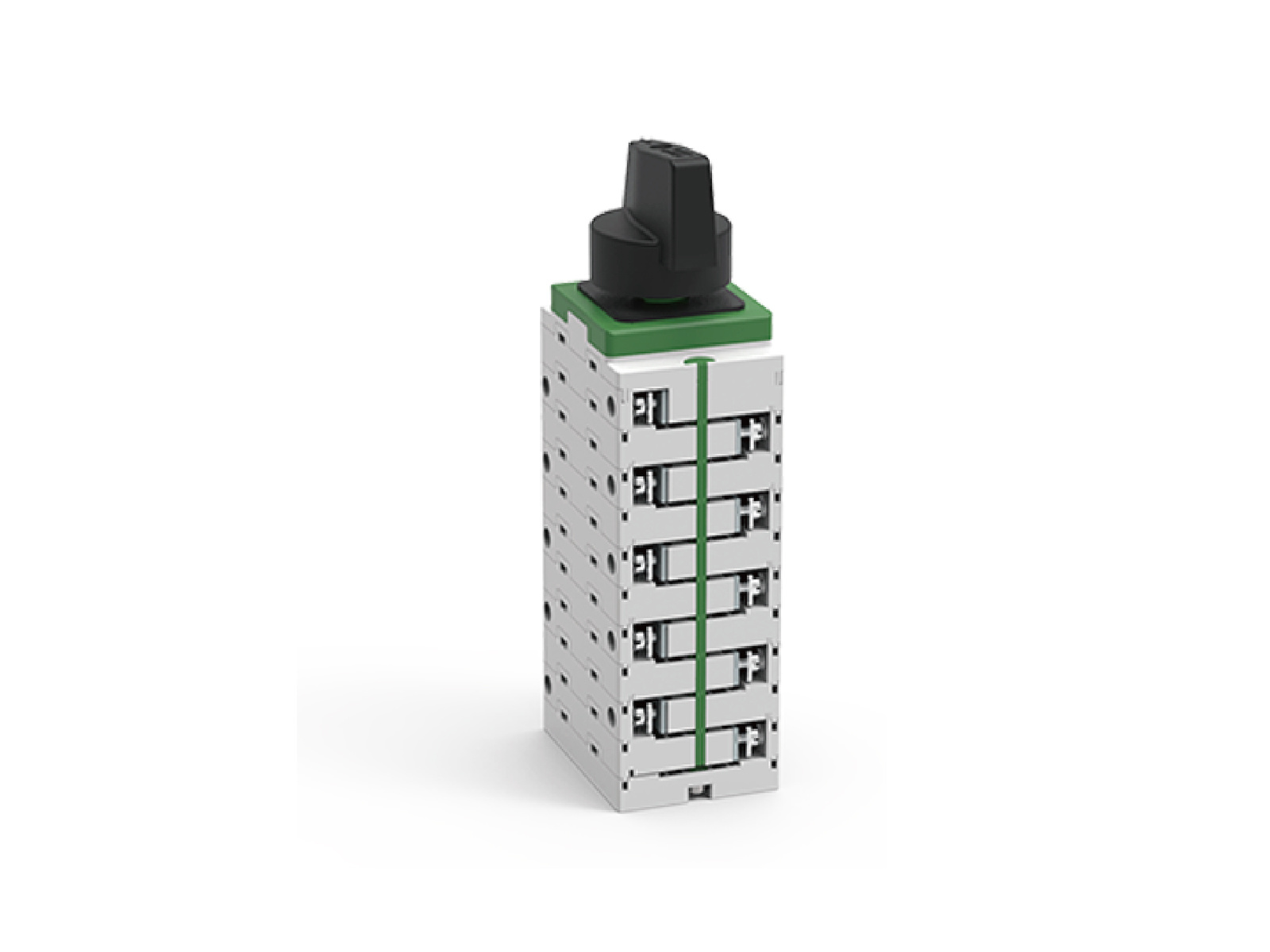

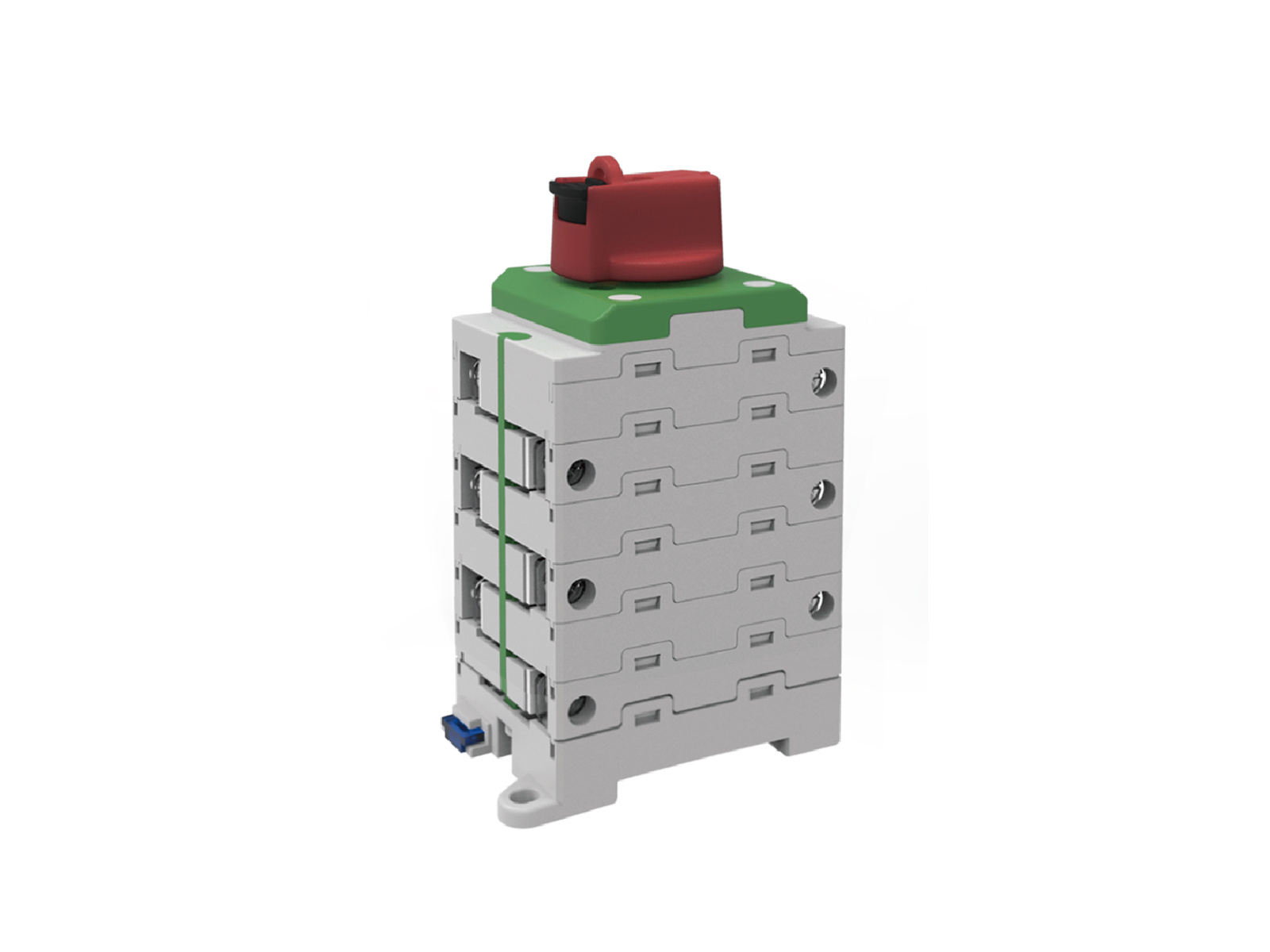

| Dinrail Board（DB） | Hole Mounting (HM) | Panel Mounting (PM) |
PEDS150H Series DC Isolator Technical Parameters
| Rated Insulation Voltage Ui | 1500V | Rated Thermal Current Ith | 40A / 50A | Number of DC Poles | 2 / 3 / 4 / 6 / 8 / 10 |
| Rated Impulse Withstand Voltage Uimp | 8kV | Rated Short-Time Withstand Current Icw | 780A (1s) | Rated Short-Circuit Making Capacity Icm | 1200A |
| Mechanical Life | 10,000 Cycles | Operating Temperature | -40°C to +85°C | IP Rating of Shaft and Mounting Nut | IP66 |
Download
Datasheet_PEDSH40-50 (Horizontal contact)_V2.2
2.0MB
