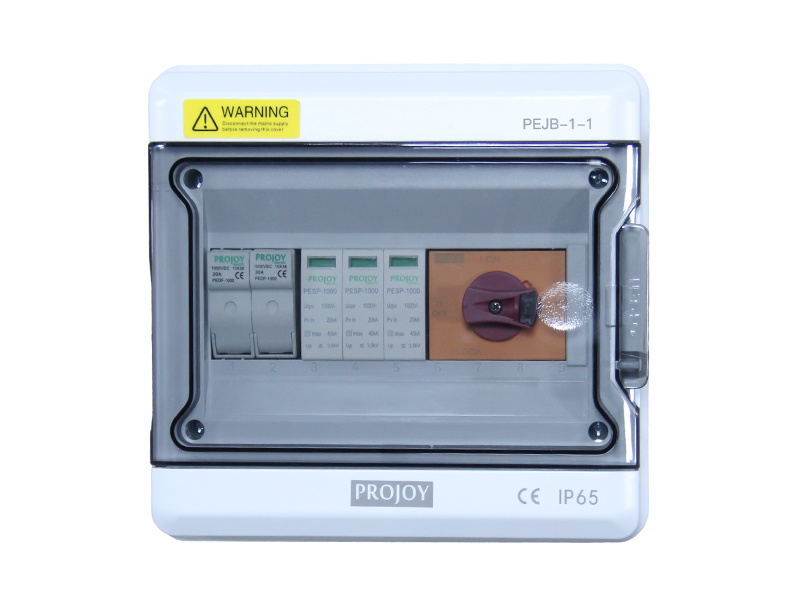

PEJB-1-1

DC Combiner Box (PEJB Series)

PEJB-2-1

DC Combiner Box (PEJB Series)

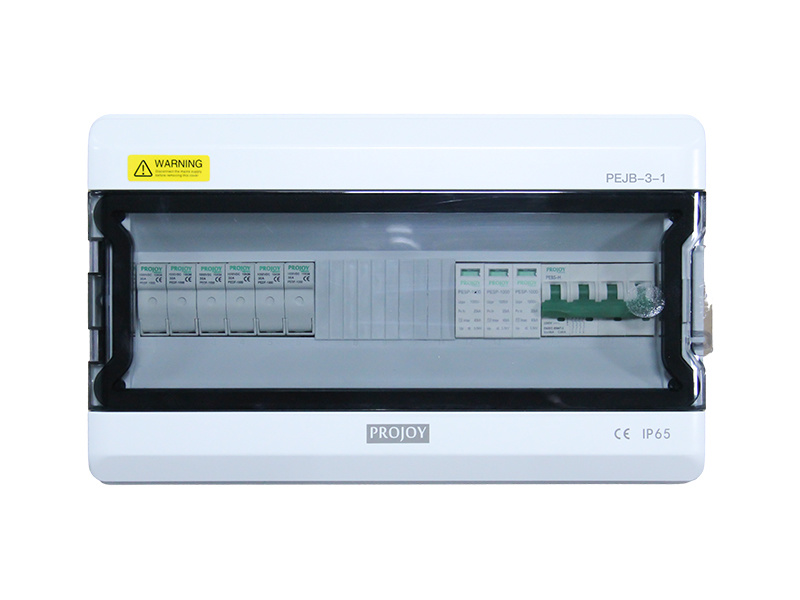

PEJB-3-1

DC Combiner Box (PEJB Series)

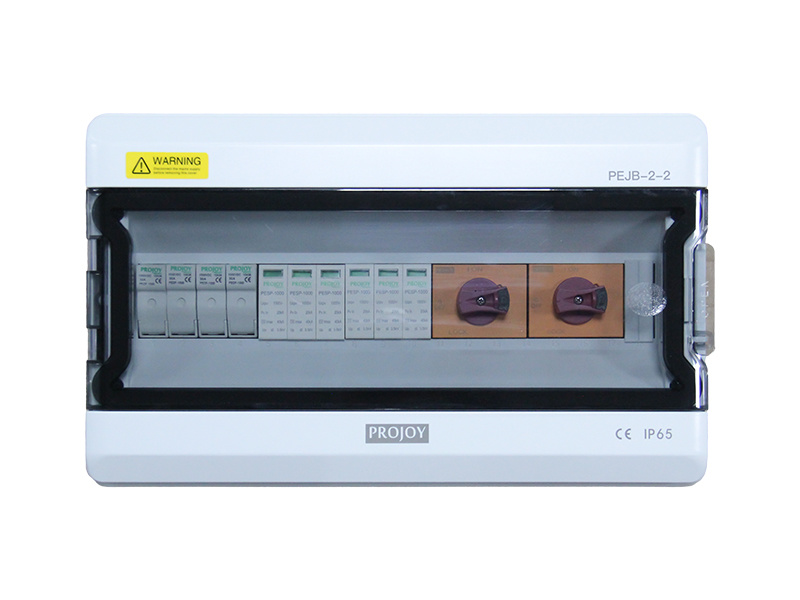

PEJB-2-2

DC Combiner Box (PEJB Series)

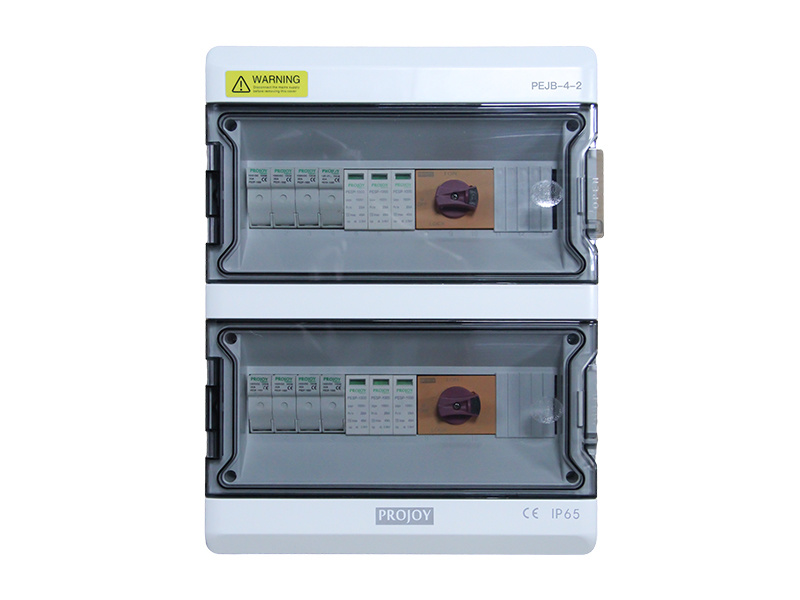

PEJB-4-2

DC Combiner Box (PEJB Series)

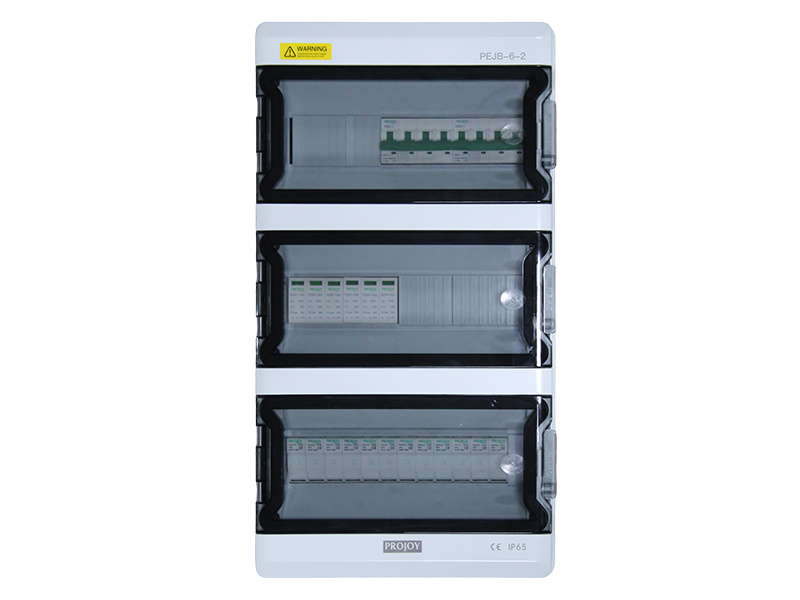

PEJB-6-2

DC Combiner Box (PEJB Series)

PROJOY PEJB Series DC combiner box is designed for safe and reliable power distribution in residential and commercial solar PV systems. Featuring an IP65-rated polycarbonate enclosure, durable waterproof construction and flexible configurations, it provides dependable protection for indoor and outdoor installations. The combiner box supports up to 1000V DC and can be customized with DC isolators, MCBs and SPDs to meet different system requirements.

DC Combiner Box Product Features

• Suitable for residential, commercial, and industrial PV systems • Compatible with three-phase systems up to 20kW
• Customizable to meet client requirements • IP65 protection rating



High Craftsmanship and Standards







IP65 Protection Level

1. The surface cover and bottom shell are wrapped with waterproof sealing strips, providing better waterproof performance
2. Fix screws in the waterproof strip to improve its waterproof performance

Reserved Space for Functional Stickers

There is a space on the surface frame especially for functional stickers. After that, you can clearly view the component control area.

Latch Function

Reserved for anti-theft lock

Circuit Baffle Structure

The circuit baffles on the left and right sides of the surface frame have a partial filling function and are easy to disassemble



Captive Frame Structure

Using captive screws and making sure the screws will not be lost when loosening the surface frame



Copper Terminal Assembly

The terminal block can pass the 960°C glow wire test, its safety performance is guaranteed






PEJB Series DC Combiner Box Models

PEJB-1-1 PEJB-2-1 PEJB-3-1
PEJB-2-2 PEJB-4-2 PEJB-6-2





PEJB Series DC Combiner Box Technical Parameters

Model PEJB-1-1 PEJB-2-1 PEJB-3-1 PEJB-2-2 PEJB-4-2 PEJB-6-2
Number of Input Strings 1 String 2 Strings 3 Strings 2 Strings 4 Strings 6 Strings
Number of Output Strings 1 String 1 String 1 String 2 Strings 2 Strings 2 Strings
Max. Output Operating Voltage per String 1000V DC 1000V DC 1000V DC 1000V DC 1000V DC 1000V DC
Max. Output Operating Current per String 15A 30A 45A 15A 30A 45A
Material Type Polycarbonate PC
Protection Level IP65
Box Size 9P 13P 18P 18P 26P 39P
