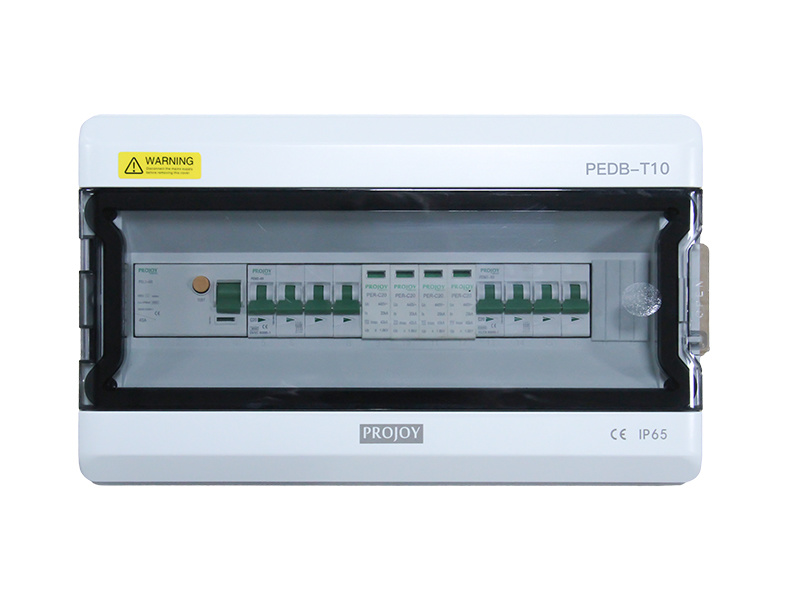

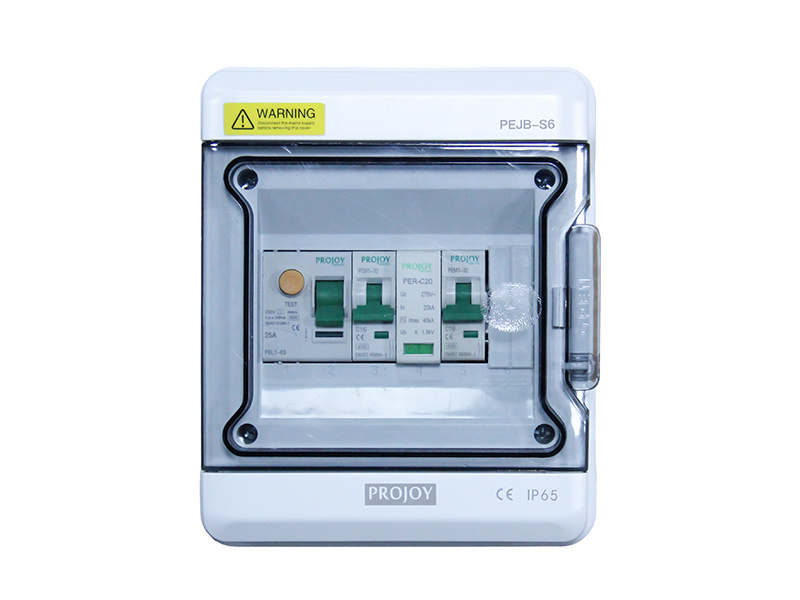

AC Combiner Box (PEDB Series)

PROJOY PEDB Series AC combiner box is designed for safe and reliable AC power distribution in residential and commercial PV systems. Its durable IP65 polycarbonate enclosure provides protection against dust and water, while flexible configurations allow different protective devices to be integrated according to system requirements.

Product DataSheet

Inquire Now

Products Category

Electric Box

AC Combiner Box Product Features

• Suitable for residential and commercial solar PV systems	• Suitable for three-phase PV systems up to 20kW
• Supports customized configurations	• IP65 protection level

High Craftsmanship and Standards

IP65 Protection Level

1. The surface cover and bottom shell are sealed with waterproof sealing strips for enhanced waterproof performance.
2. The fixing screws are positioned inside the waterproof sealing strip to further improve sealing performance.

Reserved Space for Functional Stickers

A dedicated area on the surface frame is reserved for functional labels, making the control area of each component easy to identify.

Latch Function

Reserved provision for installation of an anti-theft lock.

Circuit Baffle Structure

The circuit baffles on both sides of the surface frame provide partial filling and can be easily removed.

Captive Frame Structure

Captive screws secure the surface frame and remain attached when loosened, helping prevent screws from being lost.

Copper Terminal Assembly

The terminal block passes the 960°C glow-wire test, providing reliable safety performance.

PEDB Series AC Combiner Box Product Model


PEDB-S3	PEDB-S6	PEDB-T10	PEDB-T20

PEDB Series AC Distribution Box Technical Parameters

Model	PEDB-S3	PEDB-S6	PEDB-T10	PEDB-T20
Rated Operating Voltage Ue	230 VAC	230 VAC	400 VAC	400 VAC
Rated Operating Current Ie	16A	32A	20A	40A
Material Type	Polycarbonate PC	Polycarbonate PC	Polycarbonate PC	Polycarbonate PC
Protection Level	IP65	IP65	IP65	IP65
