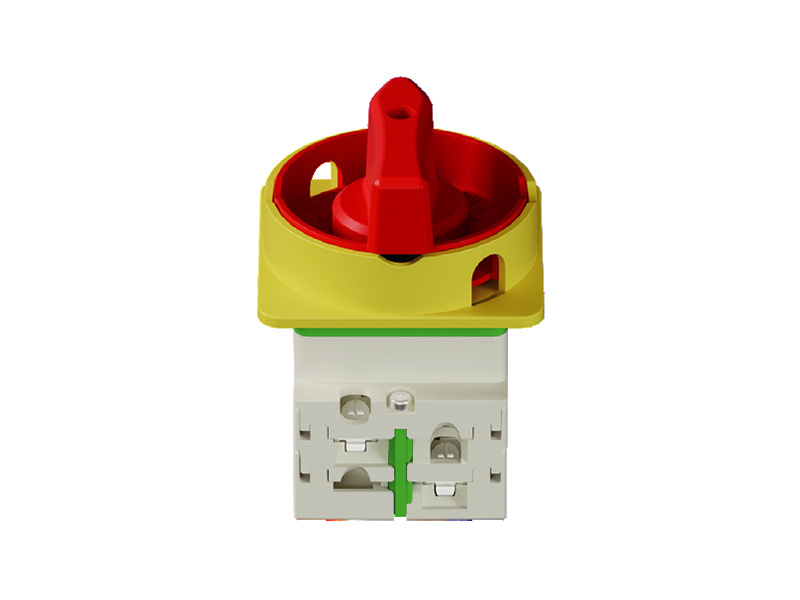

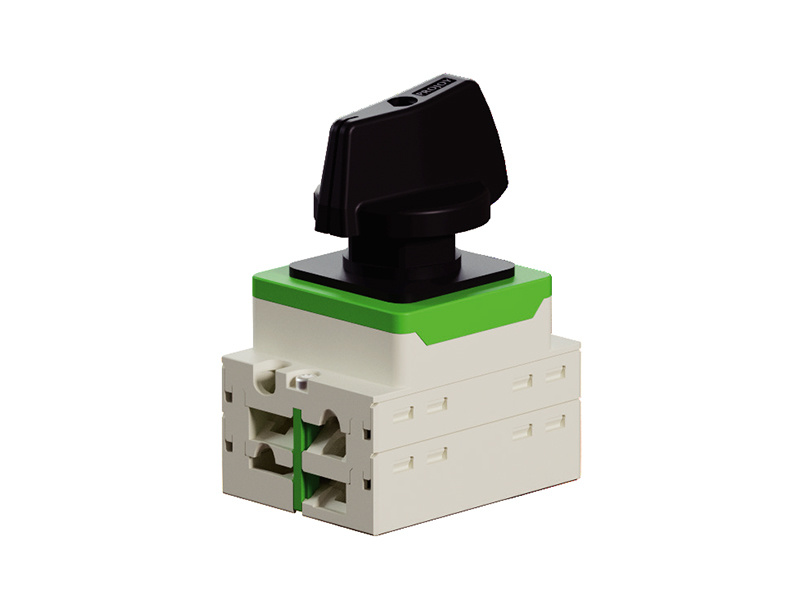

PEDS150H Series DC Isolator (1500V, 16–63A)
DC Isolator Product Features
| • Compact modular design, 1500V DC insulation voltage, 2–10 pole options | • Secure installation and sealing for IP66 protection |
| • Front or reverse contacts for flexible wiring | • Fast switching time under 5ms |
| • Self-cleaning contacts for extended service life | • Full-load operation from -40°C to +70°C |
High Craftsmanship and Standards
 |
 |
 |
| Small volume | Flame retardant material | DC-PV1/PV2 |
 |
 |
 |
| Short Short | Full range of accessories | Multiple wiring |
Product Model
 |
 |
 |
| DB | HM without lock | PM |
PEDS150H Series DC Isolator Technical Parameters
| Rated Insulation Voltage (Ui) | 1500V | Rated Thermal Current (Ith) | Up to 63A | Rated Impulse Withstand Voltage (Uimp) | 8kV |
| Number of DC Poles | 2 / 3 / 4 / 6 / 8 / 10 | Rated short-time withstand current (Icw) | 780A (1s) | Rated short-circuit making capacity (Icm) | 1200A |
| Mechanical Life | 10,000 | Electrical Life | 300 times (120/h) | Operating Temperature | -40°C to +85°C |
Download
Datasheet_PEDS150H (R&F)_UL-V202309 English(2)
10.1MB
