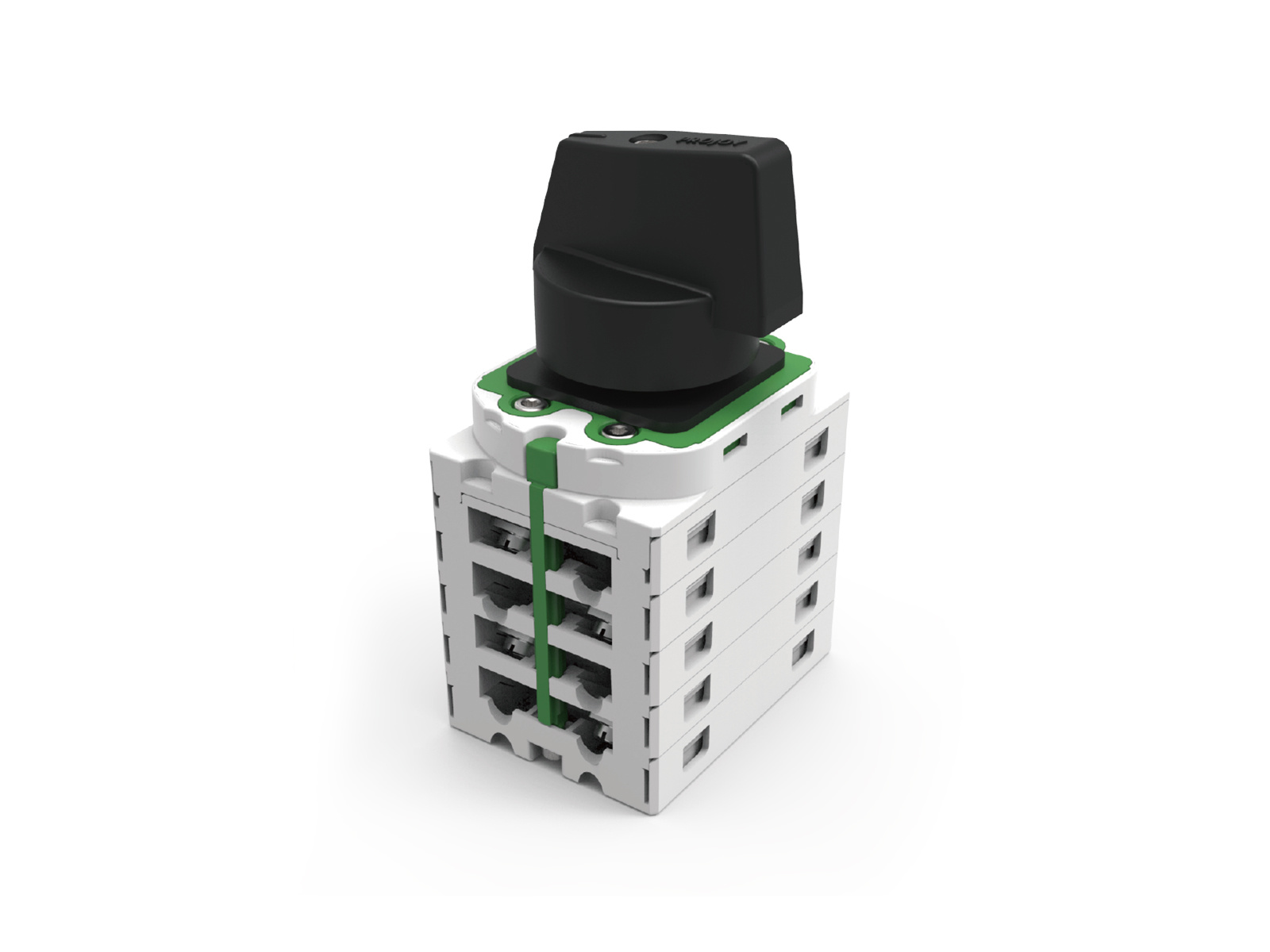

Hole Mounting (HM)

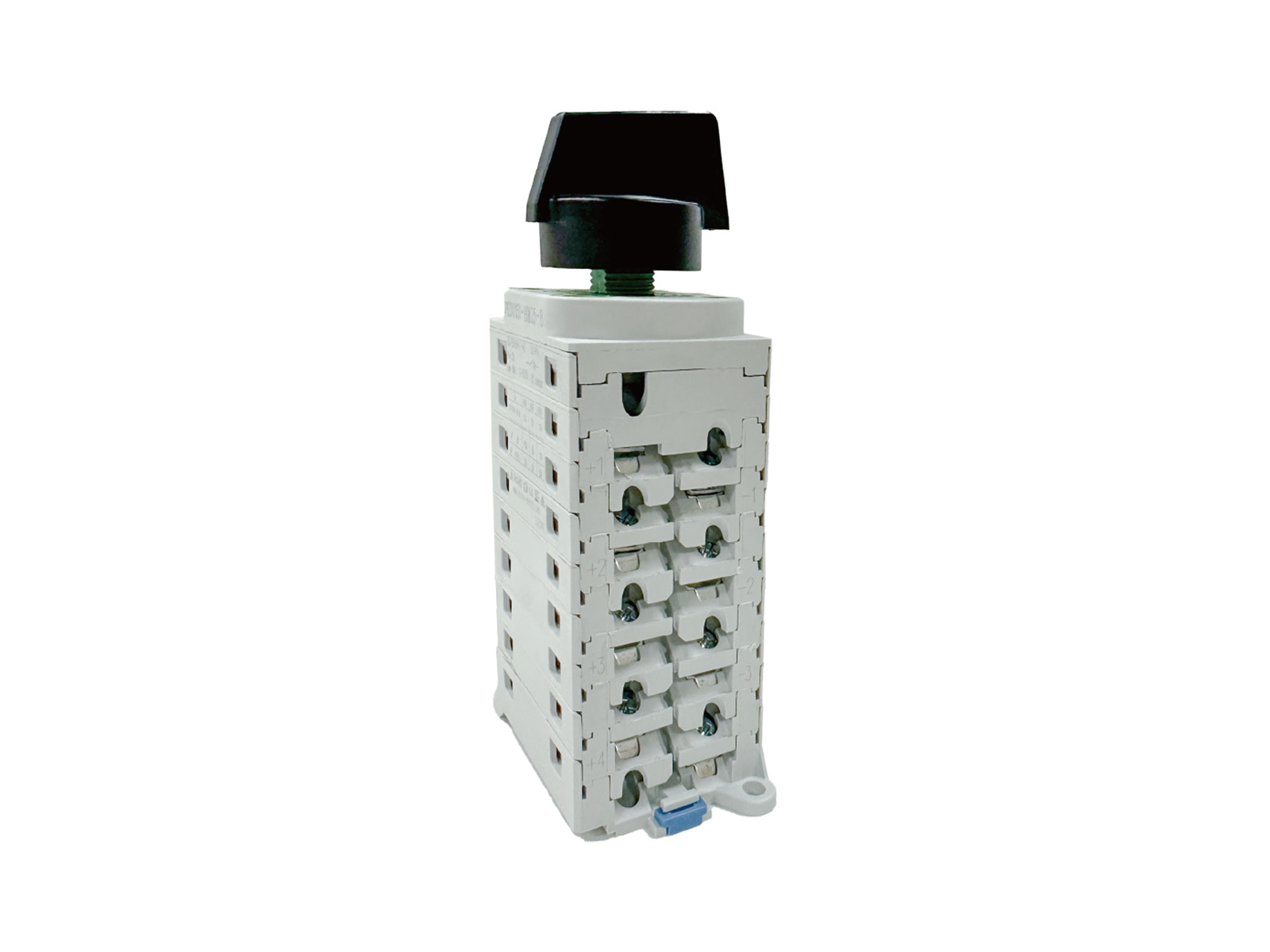

Panel Mounting (PM)

Dinrail Board(DB)

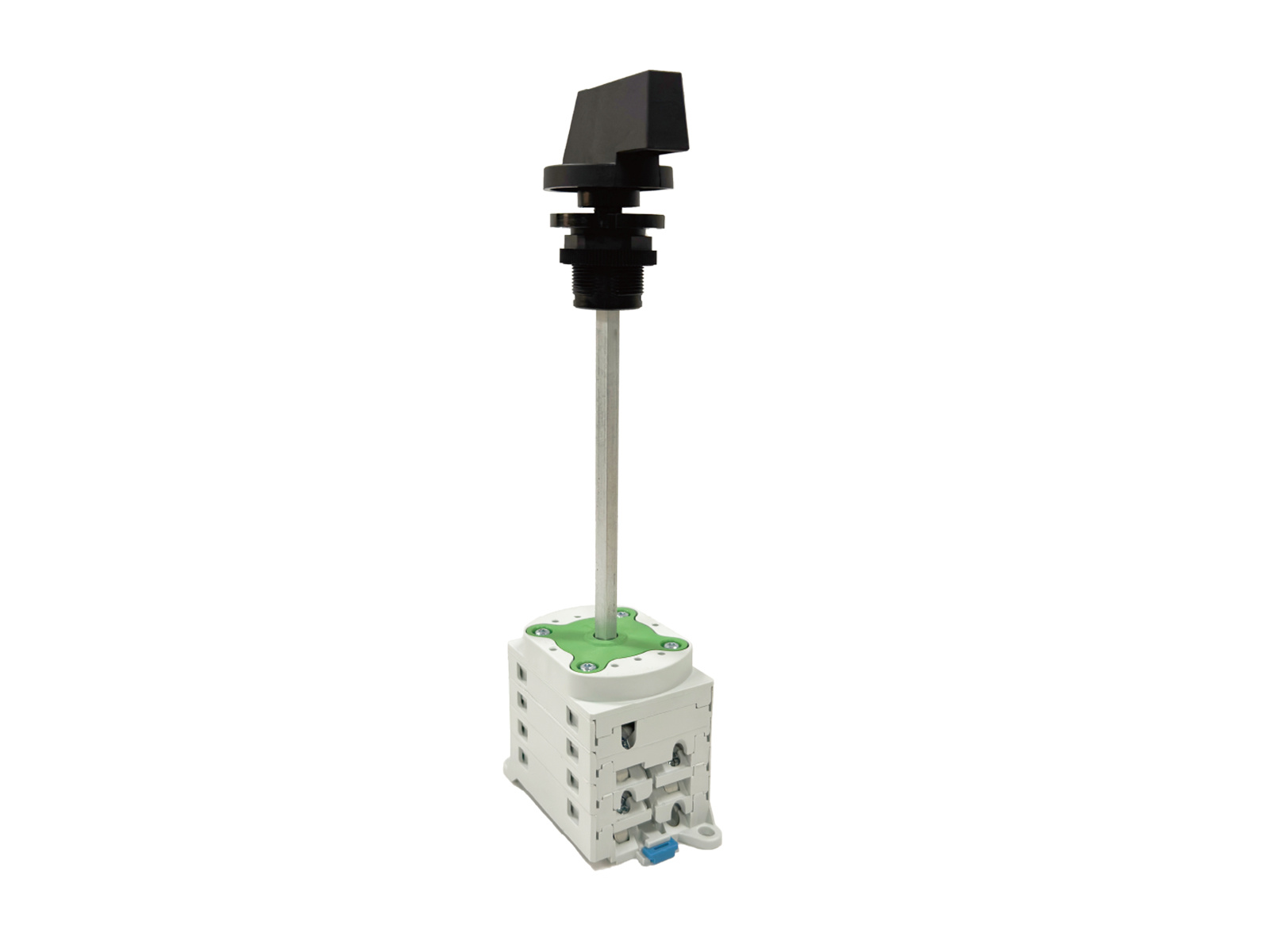

Door Clutch (DC)

PEDS Series DC Isolator (1500V, 16–55A)

PROJOY PEDS Series DC isolators provide safe circuit isolation for solar PV and other DC systems. Featuring a compact, flame-retardant design and short arcing distance, the series offers front or reverse contact configurations, multiple pole options and flexible mounting methods.

Product DataSheet

Inquire Now

Products Category

DC Isolating Switch

DC Isolator Product Features

•Compact modular design, 1500V DC insulation voltage, 2P–8P options	• Secure installation and sealing for IP66 protection
•Front or reverse contacts for flexible wiring	•Switching time under 5ms
•Self-cleaning contacts for extended service life	•Full-load operation from -40°C to +70°C

High Craftsmanship and Standards

Small volume

Flame retardant material

Arcing Short

Complete accessories

Multiple wiring

PEDS Series DC Isolator Models


Hole Mounting (HM)	Panel Mounting (PM)	Dinrail Board(DB)	Door Clutch (DC)

PEDS Series DC Isolator Technical Parameters

Rated Insulation Voltage (Ui)	DC 1500V	Rated thermal current (Ith)	16A, 25A, 32A, 40A, 55A	Poles	2P/3P/4P/6P/8P
Rated impulse withstand voltage (Uimp)	8kV	Rated short-time withstand current Icw	780A (1s)	Rated short-circuit making capacity Icm	1200A
Mechanical life	10,000 Cycles	Electrical life	300 Cycles	Installation method	Hole Mounting, Panel Mounting, DIN-Rail Mounting, Enclosure
