PEM1-63-1P

PEM1-63-2P

PEM1-63-3P

PEM1-63-4P

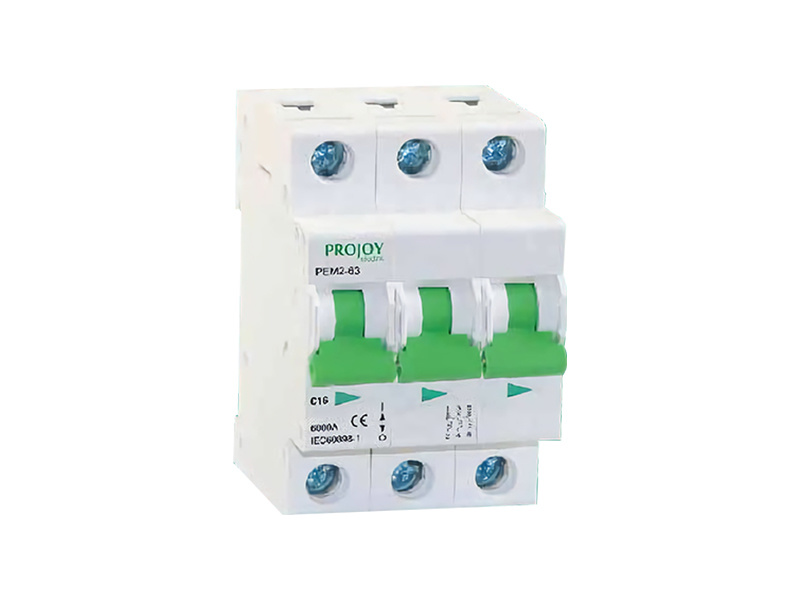

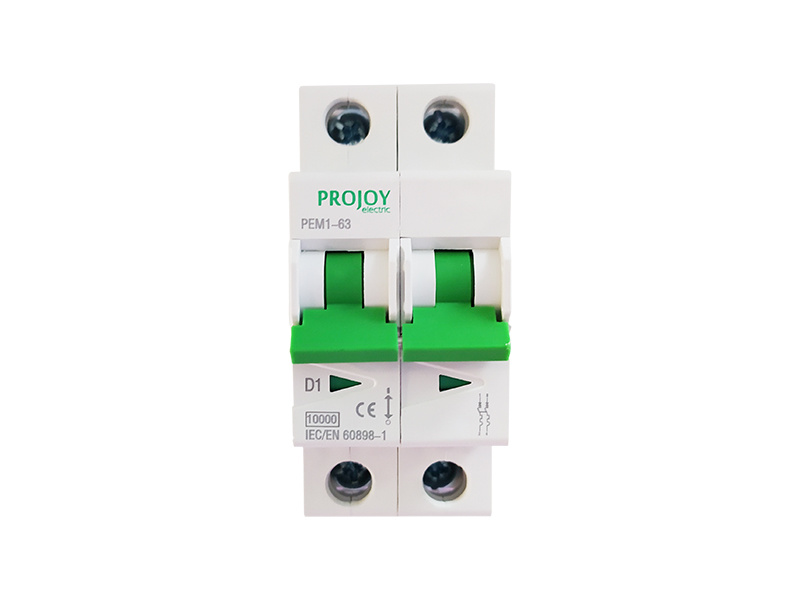

PEM Series AC Miniature Circuit Breaker

Projoy PEM Series AC MCB is a protective appliance for terminal distribution lines, used for overload and short circuit protection of lines and electrical equipment, and has isolation function, which can be opened and closed with load.
  Product DataSheet
Inquire Now

Products Category

AC Power Distribution Components

Share to

High Craftsmanship and Standards
Full current specification High short-circuit breaking capacity, quick arc extinguishing All kinds of tripping characteristics

Long mechanical and electrical life Flame retardant material, more secure Status indicator


Product Model
PEM1-63-1P PEM1-63-2P PEM1-63-3P PEM1-63-4P





Technical Parameter

Rated current 1A,3A,6A,10A,16A,20A,25A,32A,40A,50A,63A Rated voltage 230V/400VAC Rated impulse withstand voltage 6~10kV
Poles 1P,2P,3P,4P Trip Characteristics B,C,D Breaking capacity 4.5~10kA
Mechanical life 20000 times Electrical life 8000 times

Download

Certificate User Manual

AC Micro Break CB Certificate

446.6KB

Download

AC Micro Break SAA Certificate

409.0KB

Download

CE certificate_PEM -63

61.6KB

Download

TUV certificate_PEM -63

90.4KB

Download

TUV+CE certificate_PEM -63

417.0KB

Download

Datasheet_PEM AC Miniature Circuit Breaker_V2.1

4.9MB

Download
