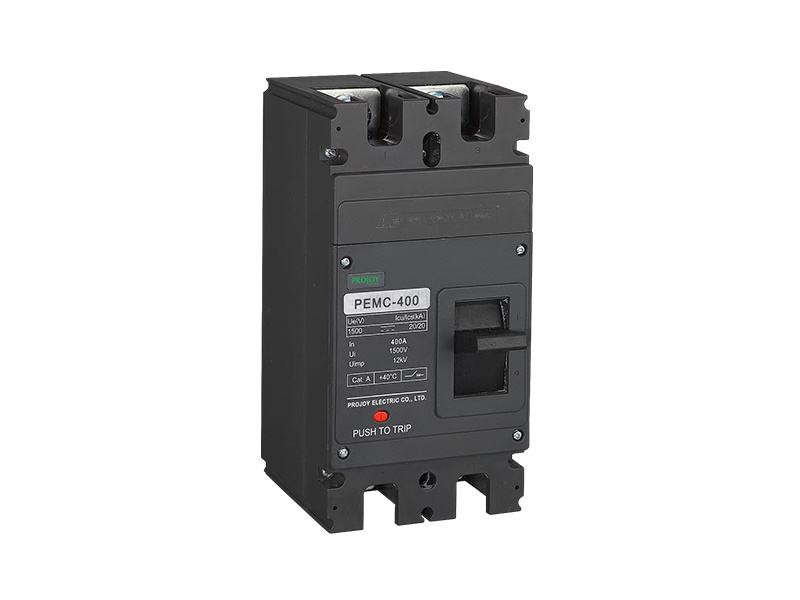

PEMC-400-2P

PEMC-400-3P

PEMC-630-2P

PEMC-630-3P

PEMC-800-2P

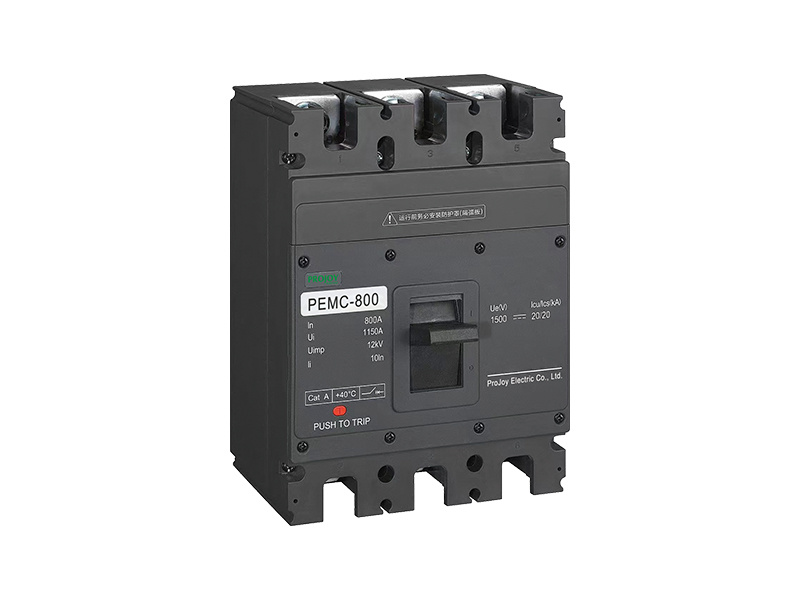

PEMC-800-3P

PEMC Series Molded Case Circuit Breaker

Projoy PEMC series molded case circuit breakers are mainly used in DC power systems to distribute electric energy and protect the power system from overload, short circuit, undervoltage and other faults, and can also be used to control the infrequent operation of motors.

Product DataSheet

Inquire Now

Products Category

DC Circuit Breaker

Share to

High Craftsmanship and Standards


High voltage	Heat and humidity resistance	Zero arcing


Large distance	High life expectancy	Low temperature rise


Strong environmental adaptability	Maximum voltage DC 1500V, maximum current 800A

Product Model


PEMC-400-2P	PEMC-400-3P	PEMC-630-2P

PEMC-630-3P	PEMC-800-2P	PEMC-800-3P

Technical Parameter

Product Model	PEMC Series 1000V, 2P, 63A~800A	PEMC Series 1500V, 2P, 225A~800A	PEMC Series 1500V, 3P, 63A~800A
Rated working voltage Ue	DC1000V	DC1500V	DC1500V
Rated working current Ie	63A~250A	225A~800A	280A~320A
Mechanical life	10000 times	10000 times	10000 times
Rated Insulation Voltage Ui	1250V	1500V	1500V
Release Type	Thermal Magnetic	Thermal Magnetic	Thermal Magnetic
Electrical life	1500 times	1500 times	1500 times
Rated impulse withstand voltage Uimp	8kV	12kV	12kV
Breaking capacity	Ics=Icu=20kA	Ics=Icu=20kA	Ics=Icu=20kA
