The PROJOY PEFS-PL Series module-level rapid shutdown device automatically shuts down connected PV modules when the temperature exceeds 85°C or the AC power supply to the controller is interrupted. The module-level RSD also supports manual emergency shutdown, allowing firefighters or maintenance personnel to quickly isolate PV power when necessary. Flexible 1-to-1, 1-to-2 and 1-to-4 configurations are available for different system designs.
  Product DataSheet
Inquire Now

Products Category

Rapid Shutdown Device

Module-Level Rapid Shutdown Device Features

• 1/1, 1/2, 1/4 optional, max. 20A  • IP68, waterproof, heat-resistant, corrosion-resistant, and impact-resistant
• Applicable scenarios from residential to C&I solar projects • Compatible with all inverter brands and PV modules on market
• 12 year warranty, 25 years lifespan



High Craftsmanship and Standards



Over temperature protection ≥ 85℃



Max 20A support



Flame retardant: UL94-V0



Ingress protection: >IP68 / NEMA 4X



Anti-interference with high reliability and stability



Long lifespan for 25 years



Compatible with all inverters, Slim EMC Design, Easy Installation



Compatible with diad and triad pv modules

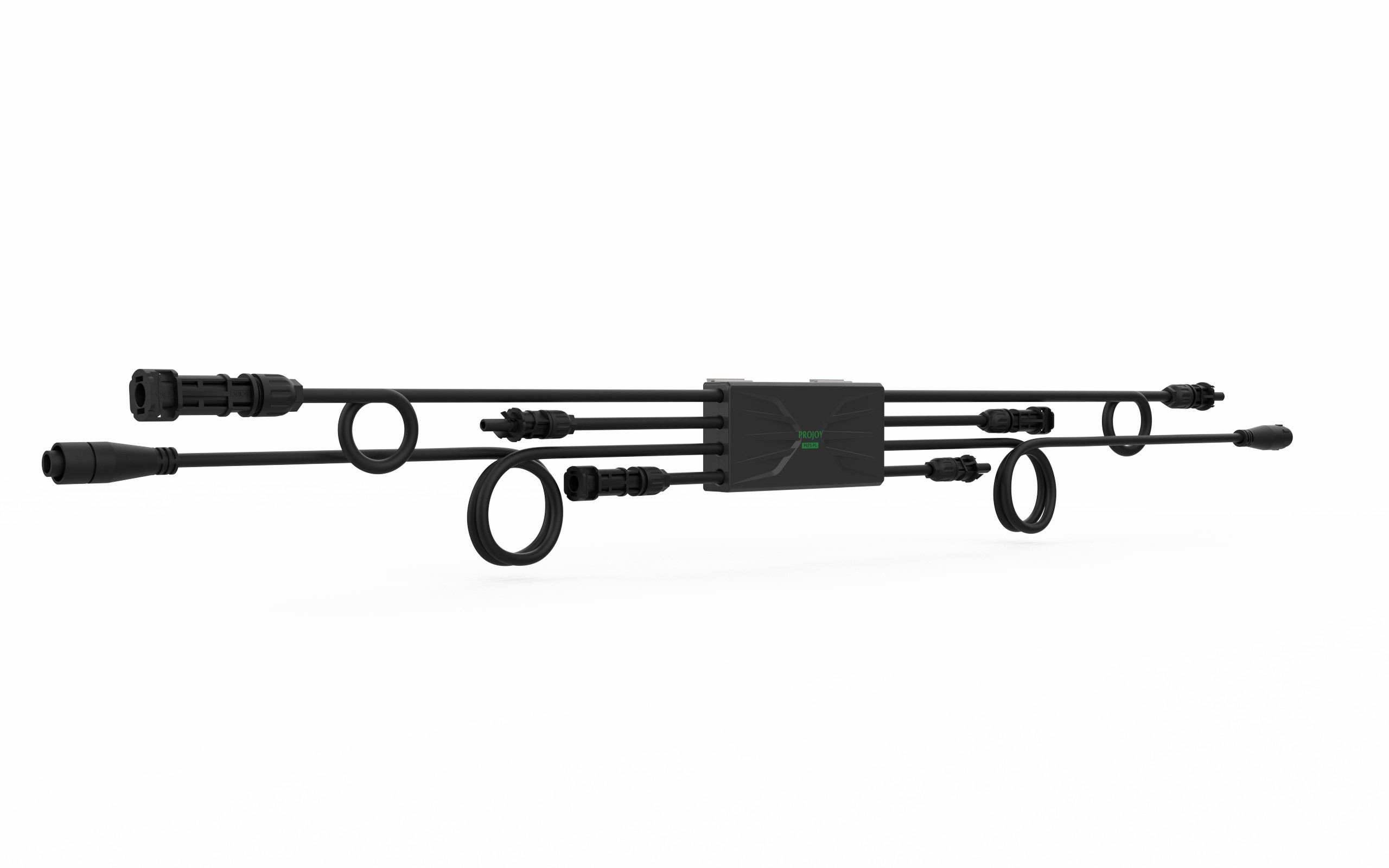

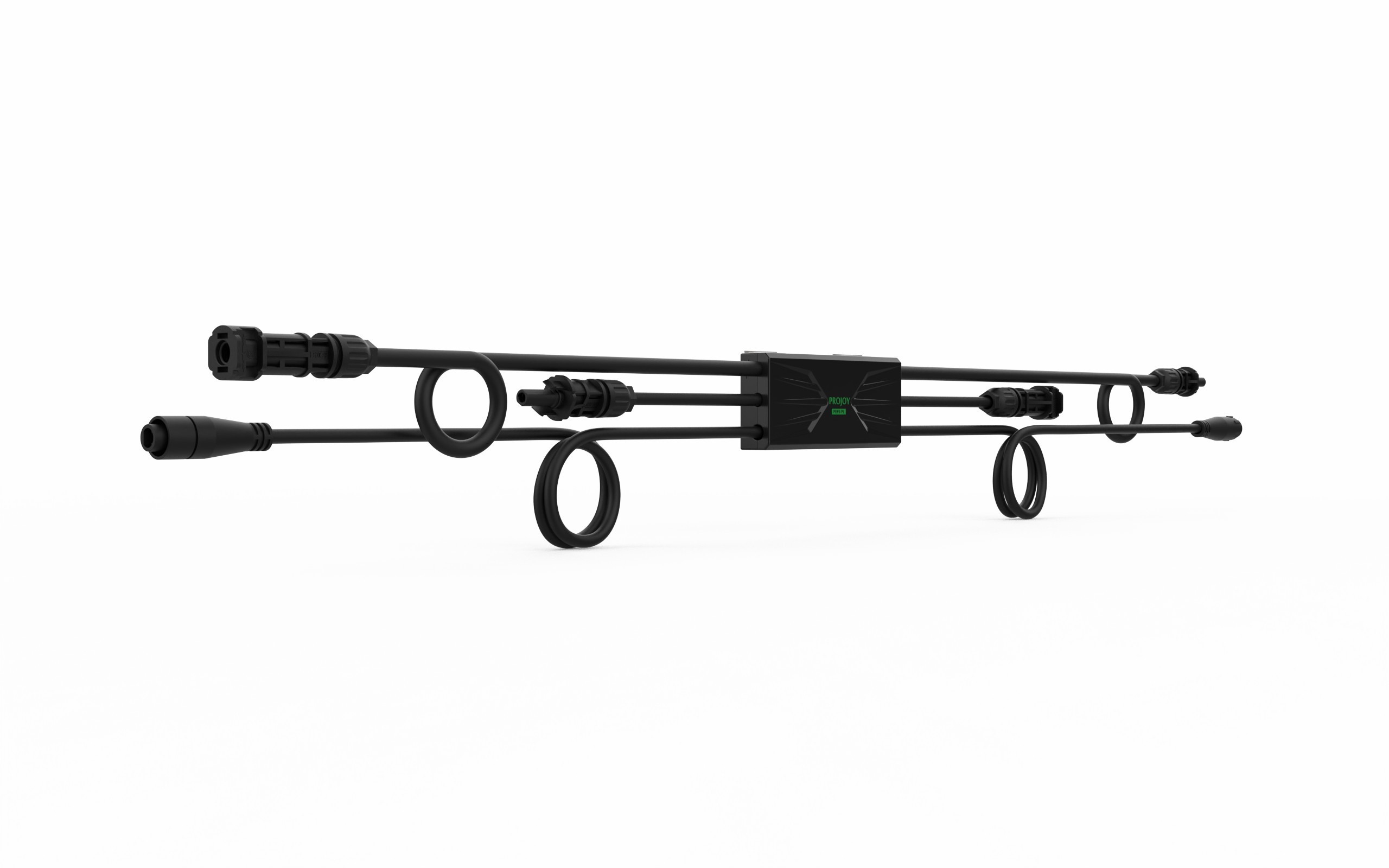

PEFS-PL Module-Level Rapid Shutdown Device Model

PEFS-PL80S-11 PEFS-PL80S-21 PEFS-PL120S-11 PEFS-PL120S-21
PEFS-PL80S-11 PEFS-PL80S-21 PEFS-PL120S-11 PEFS-PL120S-21





PEFS-PL Module-Level RSD Technical Parameter

Product Model PEFS-PL80S-11 PEFS-PL80S-21 PEFS-PL120S-11 PEFS-PL120S-21
Max Input Voltage 80V 80V 120V 120V
Max Input current 20A 20A 20A 20A
Max Output Voltage 80V 160V 120V 240V
System Voltage
 1000V / 1500V 1000V / 1500V 1000V / 1500V 1000V / 1500V
Number of PV Inputs 1 2 1 2
Number of Modules Recommend 1 2 2 4
Protection Temperature 85° C 85° C 85° C 85° C





Rapid Shutdown Control Box (DC 24V)

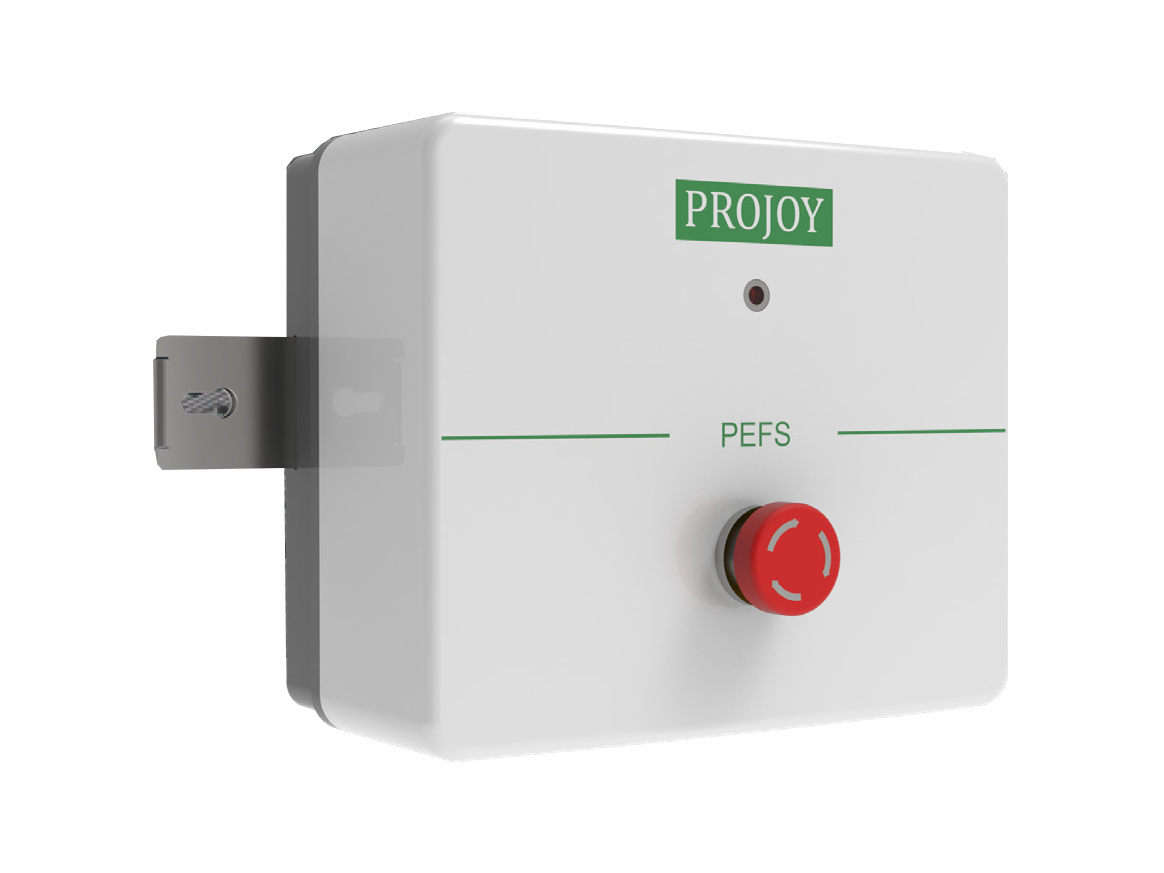

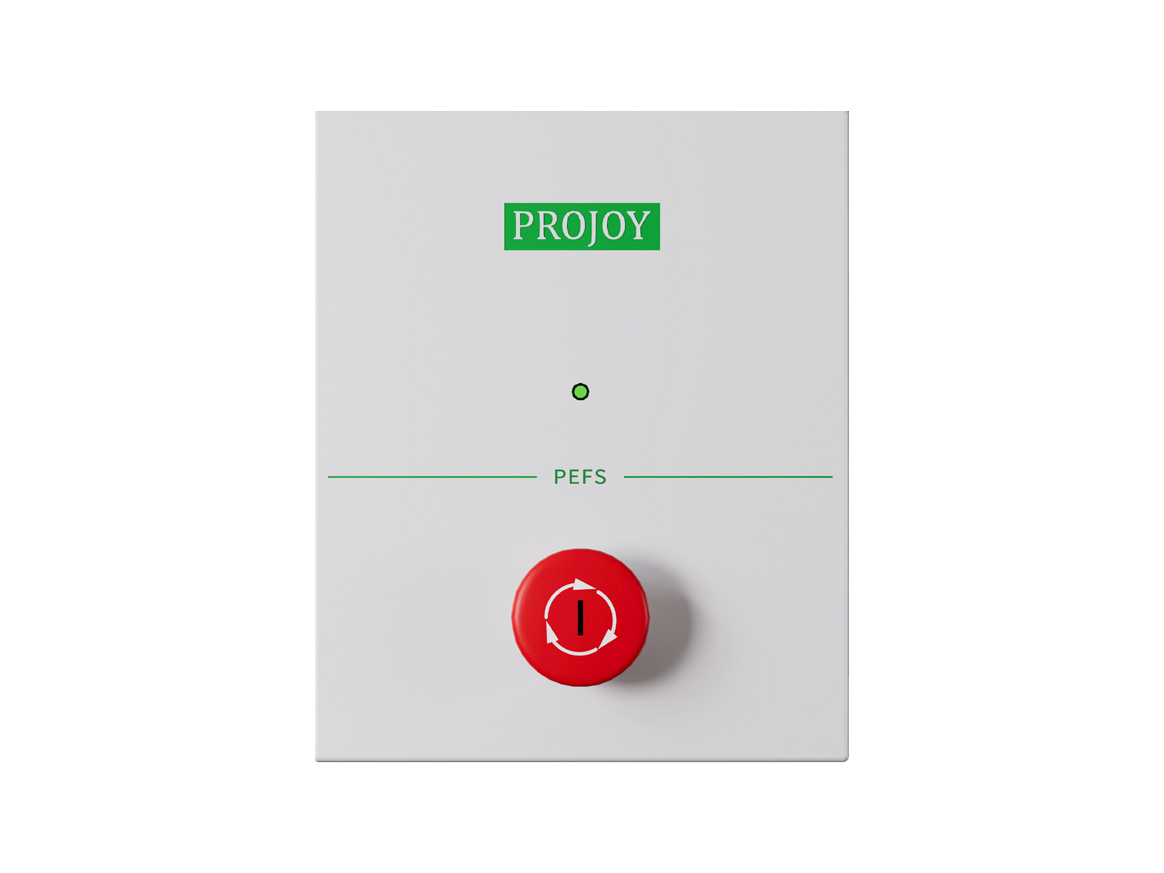

PEFS-PCY / PCZS-S-60-11 PEFS-PCY / PCZS-S-180-31     PEFS-PCY / PCZS-S-480-81

PEFS-PCY / PCZS-S-60-11

PEFS-PCY / PCZS-S-180-31

PEFS-PCY / PCZS-S-480-81





High Craftsmanship and Standards



Comply with NEC2017 / NEC2020(690.12) and Sunspec RSD requirements



Flame retardant: UL94-V0



Lockable, avoiding mis-action



UL 1741 PVRSE compliance / UL 3741 PVRSS compliance



Up to 480 pcs of modules under controller



Ingress protection IP65



Max 50°C, No power degradation



Anti-interference, stable & reliable





Rapid Shutdown Control Box Technical Parameter

Product Model PEFS-PCY / PCZS-S-60-11 PEFS-PCY / PCZS-S-180-31     PEFS-PCY / PCZS-S-480-81
Operating AC Voltage Range 100V-240V 180V-264V 180V-264V
Output Voltage 24V DC 24V DC 24V DC
Output current 2.2A 8.8A (3 Channels) 17.6A (8 Channels)

Download

Certificate User Manual

Projoy 24V RSD 3741 certificate 221100805SHA-V1

207.8KB

Download

DC-24V CE-LVD CLJS21092433867R

989.3KB

Download

DC24 ETL 5021921-210901078SHA-001_atm

141.7KB

Download

PROJOY_RapidShutdown_ModuleLevel_Datasheet_EN

8.8MB

Download
